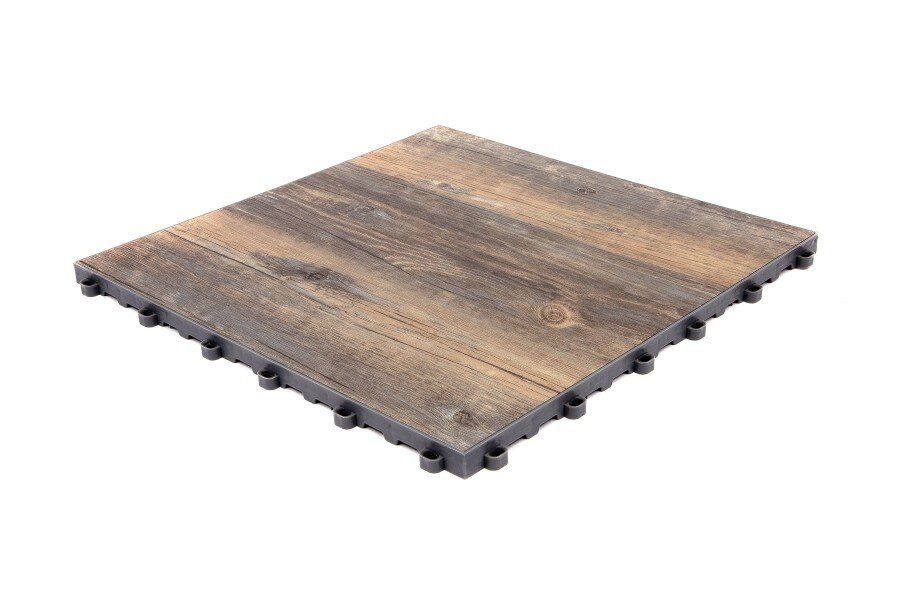

Swisstrax Ribtrax Pro Smooth Tiles
For the dedicated garage enthusiast who demands more than just parking space, Swisstrax introduces the Ribtrax Pro Smooth Garage Tiles. Responding to the need for a workshop-friendly surface, these colorfast and chemical-resistant interlocking tiles provide a smooth, durable garage flooring solution ideal for any multi-purpose garage. Engineered for versatility and safety, these interlocking garage tiles feature a uniform, low-friction, semi-gloss surface for effortless movement of rolling tool cabinets and chairs. The nique perforated design of the vented pattern allows water to drain freely, maintaining a slip-resistant surface even in wet conditions. With a 60, 000 lb. rolling load rating, a limited lifetime warranty backs these interlocking garage tiles. Both the vented pattern and vinyl top options interlock together to provide endless custom design options to create your uniquely personalized garage flooring.
Recommended Uses: Ribtrax Pro Smooth Tiles are the perfect garage flooring tiles for any multi-use garage. Great for residential and commercial use, these modular tiles are used as basement flooring, workshop flooring, as patio flooring, as flooring in boats, car wash flooring, and much more.
Note: These interlocking tiles can be damaged under the weight of a car jack. We recommend using your car jack directly on concrete or place a plywood board or steel plate under the jack.
- •Resistant to oil, gas, acid, or solvents including Skydrol and Alkalis.
- •60,000 lb. rolling weight.
- •Temperature tolerances: -22 °F to + 248 °F / Horizontal burn rating.
- •Lifetime warranty, made in the USA.
- •Slip-resistant, colorfast.
- Size
- 15.75" x 15.75" x 5/8"
- Items/box
- 1.0000
- Variants
- 25
Available Variants (25)
| Swatch | SKU | Color | Status | In stock |
|---|---|---|---|---|
 | 11434_14139_62165 | Racing Red | Active | No |
 | 11434_14139_62166 | Slate Gray | Active | No |
 | 11434_14139_62167 | Royal Blue | Active | No |
 | 11434_14139_62168 | Tropical Orange | Active | No |
 | 11434_14139_62169 | Pearl Silver | Active | No |
 | 11434_14139_62170 | Mocha Java | Active | No |
 | 11434_14139_62171 | Jet Black | Active | No |
 | 11434_14139_62172 | Citrus Yellow | Active | No |
 | 11434_14139_62173 | Chocolate Brown | Active | No |
 | 11434_14139_62174 | Arctic White | Active | No |
| | 11434_19257_80847 | Racing Red | Active | — |
| | 11434_19257_80848 | Slate Gray | Active | — |
| | 11434_19257_80849 | Royal Blue | Active | — |
| | 11434_19257_80850 | Tropical Orange | Active | — |
| | 11434_19257_80851 | Pearl Silver | Active | — |
| | 11434_19257_80852 | Mocha Java | Active | — |
| | 11434_19257_80853 | Jet Black | Active | — |
| | 11434_19257_80854 | Citrus Yellow | Active | — |
| | 11434_19257_80855 | Chocolate Brown | Active | — |
| | 11434_19257_80856 | Arctic White | Active | — |
 | 11434_20751_89014 | Light Maple | Active | No |
 | 11434_20751_89015 | Black Oak | Active | No |
 | 11434_20751_89016 | Reclaimed Pine | Active | No |
 | 11434_20751_89017 | Carbon Fiber | Active | No |
 | 11434_20751_89018 | Ash Pine | Active | No |
Installation
Installation of these garage flooring tiles typically includes:
- Clean your sub floor so that it is free of all dirt, dust, grease, or other foreign material.
- When installing the hard plastic tiles, we recommend starting in the front left corner of the room and working your way out from there. Make sure the female side (loops) of the tile is facing away from the wall.
- After filling the left wall with tiles and the adjacent wall, proceed to fill the rest of the room with whole tiles. When you come up to a wall or object, don’t worry. Just measure the area and cut the tiles with a tile cutter or a power saw with a fine-toothed blade and put the trimmed tiles into place.
- When trimming the tiles into place, make sure you leave about a 3/4” space between the tiles and the wall or obstruction. Once the tiles are in place, you can then snap in the edge pieces, if you purchased them.
Maintenance
Cleaning of these multiuse garage tiles typically includes:
- Vacuuming or sweeping any loose crumbs, dust, or debris from the tiles when necessary.
- Hose off or damp mop the floor tiles with a mild soap and water mixture for tough or caked on dirt and/or stains.
Full Specifications
| alt unit of measure | sqft |
| calculator type | sqft |
| can backorder | true |
| car jack approved | false |
| category filters | ["garage_category","garage_tiles"] |
| chemical resistant | true |
| color axis | B2436 |
| color display name | Racing Red |
| colorfast | true |
| esd max | 7 |
| esd min | 5 |
| exact height inches | {"amount":"0.6200","unit":"INCH"} |
| exact length inches | {"amount":"15.7500","unit":"INCH"} |
| exact weight lbs | {"amount":"1.3000","unit":"POUND"} |
| exact width inches | {"amount":"15.7500","unit":"INCH"} |
| flooring designer | none |
| gmc shipping weight | 10.0000 |
| has corner border center | false |
| installation | ["interlocking","temporary","temporary_or_semi_permanent"] |
| interlock style | hidden_snap_together |
| inventory | false |
| is variant kit | false |
| items per box | 1.0000 |
| lf features | ["chemical_resistant","colorfast","drainage"] |
| lf shipping program | ["free_ship"] |
| material | Polypropylene |
| max order qty | 99999 |
| min order qty | 1 |
| nom thickness | 5/8" |
| nominal height inches | {"amount":"0.6250","unit":"INCH"} |
| nominal length inches | {"amount":"15.7500","unit":"INCH"} |
| nominal sq ft | 1.72 |
| nominal width inches | {"amount":"15.7500","unit":"INCH"} |
| origin | made_in_usa |
| pdp icon 5 | high_traffic |
| pdp icon 6 | stain_resistant |
| percent overage | 5 |
| primary color filter | red |
| qty increment | 1 |
| quick ship | false |
| rolling weight | {"amount":"60000.0000","unit":"POUND"} |
| sample id | S12640 |
| shipping program | free_ship |
| size | 15.75" x 15.75" x 5/8" |
| sku | 11434_14139_62165 |
| slip resistant | yes |
| status color | color_launched |
| status product | product_launched |
| status variant | variant_launched |
| tf garage tile type | rigid |
| tf made in usa | made_in_usa |
| unit of measure | tile |
| variant axis | A2519 |
| variant display name | Vented Pattern 15.75" x 15.75" Tile |
| visible when oos | true |
| warranty filter | ["lifetime"] |
