Joy Carpets Diamond Lattice Carpet
Model · 11452

Joy Carpets Diamond Lattice Carpet

carpet roll made in usa Nylon
made in usa high traffic stain resistant easy to clean

The beautiful design of Diamond Lattice by Joy Carpets adds luxury and sophistication to any space. Available in several muted tones, the attractive diamond pattern adds contrast without being overwhelming. Designed to be extremely durable, this exceptional quality carpet is easy to clean and maintain, making it perfect for high traffic spaces and home theaters. For assistance in placing large orders, please contact our service team.

Fiber: Premium WearOn® Nylon

Pattern Repeat: 4.5" x 3"

Width: 13'6"

Backing: Actionbac®

Country of Origin: USA

  • Perfect for high-traffic residential spaces
  • Mold, stain, wear and soil resistant
  • Easy to clean and maintain

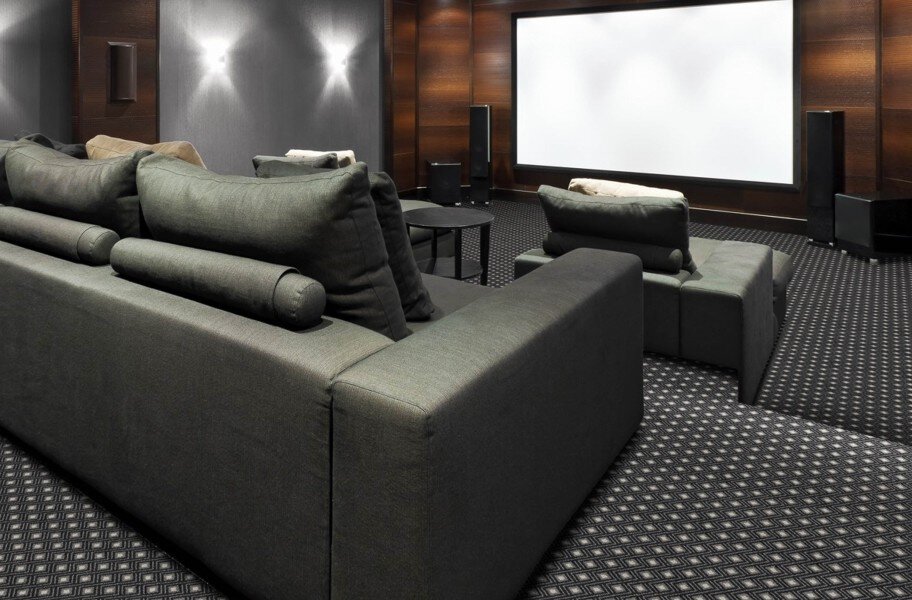

  • Great for home theater rooms.
  • American Made.
Size
13.5'
Items/box
1.0000
Variants
24
Warranty
Lifetime Warranty.

Available Variants (24)

Swatch SKU Color Status In stock
11452_15159_63267 Latte Active No
11452_15159_63268 Beige Active No
11452_15159_63269 Chocolate Active No
11452_15159_63270 Midnight Active No
11452_15159_63271 Taupe Active No
11452_15159_63272 Pewter Active No
11452_15159_82687 Anchor Active No
11452_15159_82688 Charcoal Active No
11452_15159_82689 Cloudy Active No
11452_15159_82690 Dove Active No
11452_15159_82691 Morning Fog Active No
11452_15159_82692 Smoke Active No
11452_16521_69147 Latte Active No
11452_16521_69148 Beige Active No
11452_16521_69149 Chocolate Active No
11452_16521_69150 Midnight Active No
11452_16521_69151 Taupe Active No
11452_16521_69152 Pewter Active No
Anchor
11452_16521_82681 Anchor Active No
Charcoal
11452_16521_82682 Charcoal Active No
Cloudy
11452_16521_82683 Cloudy Active No
Dove
11452_16521_82684 Dove Active No
Morning Fog
11452_16521_82685 Morning Fog Active No
Smoke
11452_16521_82686 Smoke Active No

Installation

First you will want to make sure your subfloor is free of all dirt and debris. If there are cracks, holes or depressions, we recommend you fill those. Stretch-In Installation: Group rolls and cuts working from the longest patter repeat gradually down to the shortest. Shift trimmed edges to achieve a match near the mid point of the seam. Insert hot melt tape under seam. Melt together that portion of the seam that is visually acceptable. Using a power stretcher or knee kicker, stretch along the “short” side in 3 to 5 foot sections. As each small section of the seam is matched, insert seaming iron and prepare that section. Leave stretcher locked in position until each section cools. Do not complete any section of seam that does not match. Once all seams are matched and complete, the entire installed area is stretched. Image and more detailed instructions of how to do this can be found in the printable instructions. Adhesive Installation: Trowel notch size, shape and adhesive coverage rate must be maintained as noted on the glue pails installation instructions. If patterned carpet is being installed, installation sequence must be determined based on pattern repeat size. On non-patterned loop pile carpets, row cut one of the edges to be seamed, overlap this edge over the other edge, and scribe cut to the row-cut edge. Obtain a net seam – do not compress – use knee kicker or “crab”stretcher to position. Bead all edges with seam sealer on all carpets regardless of construction. Avoid air entrapment – lay carpet into adhesive working in both directions from center. Roll with 75 lb. Roller in both length and width directions or as directed by the cushion manufacturer in “double stick” applications. Restrict heavy traffic and furniture movement for 24 hours.

Maintenance

To keep your rooms clean and inviting, carpets should be vacuumed frequently. Spills should be removed immediately with an absorbent cotton cloth and clean water. Periodic maintenance can be performed as needed using a hot water extraction-cleaning machine.

Full Specifications

alt unit of measure sqft
banner msg int PLEASE NOTE: 26 oz. orders over 100ft. total and 32 oz. orders over 50 ft. total are subject to manufacturer cut guidelines. Cut lengths will NOT be guaranteed by manufacturer.
bazaarvoice brand joy_carpet
calculator type roll
can backorder true
cares assessment notapplicable
category filters ["carpet_roll_category"]
color axis B1978
color display name Latte
esd max 20
esd min 10
exact length inches {"amount":"12.0000","unit":"INCH"}
exact weight lbs {"amount":"6.0000","unit":"POUND"}
exact width inches {"amount":"162.0000","unit":"INCH"}
face weight {"amount":"26.0000","unit":"ONCE"}
flooring designer none
gmc shipping weight 6.0000
has corner border center false
inventory false
is variant kit false
items per box 1.0000
lf features ["mold_mildew_resistant"]
material Nylon
max order qty 50
max roll legnth 50.0000
min order qty 1
min rollcut 10.0000
nominal length inches {"amount":"0.0000","unit":"INCH"}
nominal sq ft 13.5
nominal width inches {"amount":"162.0000","unit":"INCH"}
origin made_in_usa
pdp icon 5 indoor
pdp icon 6 custom_order
qty increment 1
quick ship false
roll width {"amount":"13.5000","unit":"FEET"}
shipping program none
size 13.5'
sku 11452_15159_63267
status color color_draft
status product product_launched
status variant variant_discontinued
tf carpet style cut_pile
tf carpet theme decorative
tf format rolls
tf made in usa made_in_usa
unit of measure linear_foot
variant axis A1221
variant display name 13'6" wide (32 oz Commercial)
visible when oos true
