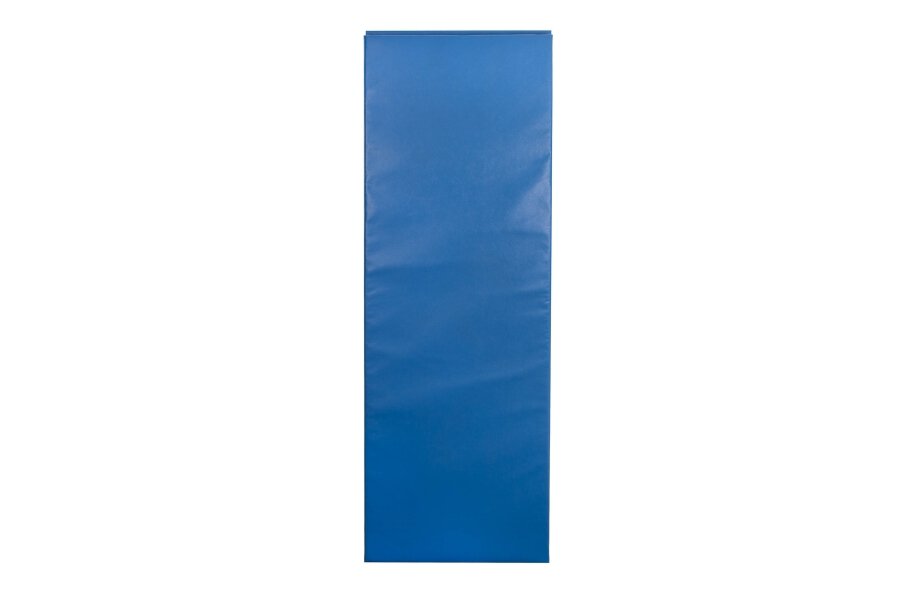

2' x 4' Safety Wall Pads
Our 2' x 4' Safety Wall Pads create a safe space in any facility to ensure athletes of all levels can push their limits and perform their best. These easy-to-clean and sanitize indoor fixed wall padding panels are antibacterial treated, antimicrobial, anti-fungal, UV treated, and resistant to mold and mildew. Expertly designed for the ultimate in impact-absorption and direct wall attachment, this style panel is a wood backed pad with 2” impact rated polyethylene foam laminated to the face using a two part adhesion process. This combination of foam and wood is wrapped front and sides and securely stapled onto the backing using Class “A” PVC Vinyl. 2' x 4' Safety Wall Pads are proudly Made in the USA with durable materials, and are backed by a 5-year limited warranty. Also great as protective wall padding for sensory rooms, and any other area where a safe cushioned space is desired.

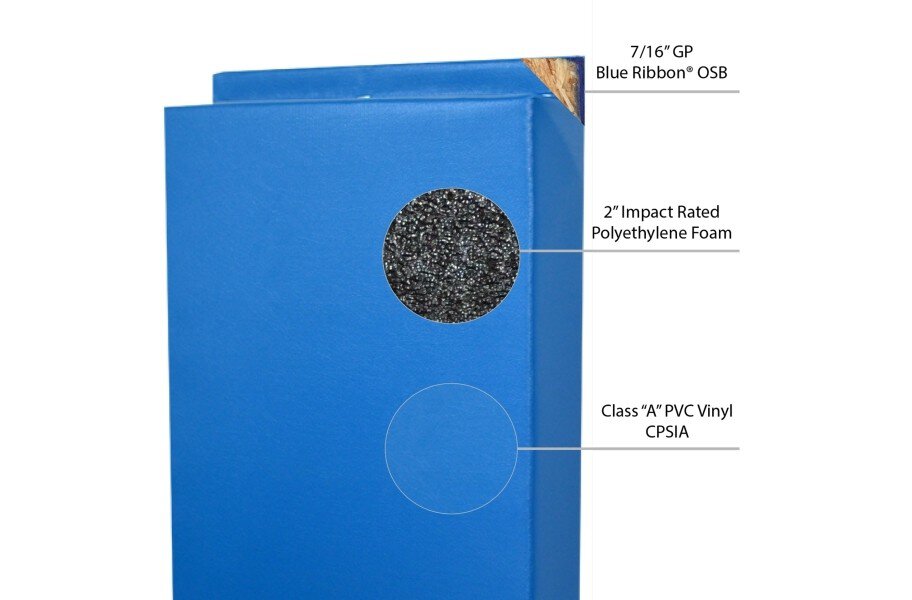

Components/ Materials:
Covering: 18.5 oz. coated smooth matte vinyl. BACshield: Anti-Mildew, Anti-Fungus, Antimicrobial, Antibacterial treated, UV treated. Passes NFPA-701, CSFM-19, and ASTM E-84 Class A fire retardant compliant.
Foam Layer: 2” polyethylene foam meets standards for ASTM 2440. The test method quantifies impact in terms of g-max and Head Injury Criterion (HIC) scores. Promotes closed-loop recycling of post-industrial scrap. Contains at least 60% and up to 100% recycled pre-consumer raw material.
Backing: 7/16" Georgia Pacific Blue Ribbon® oreinted strand board (OSB), Third-party certified to the Sustainable Forestry Initiative® procurement standard, Exposure 1 bond durability. Contains no added urea formaldehyde resins.
Size: 2' x 4'.
Thickness: 2-1/2"
Weight: 17 lbs.
Hardware (Z-Clip Only): Z-Clip pads will come with enough z-clip for the full width of the pad on the wall side, top and bottom. On the panel side it will come with two clips (each 1 1/2" wide) for the top and for the bottom. Each clip has two holes and a 3/4" pan head screw is supplied for anchoring to the panel.
Please note: On the wall side the full width piece is pre drilled for anchoring, but not supplied with hardware. This hardware should be chosen based on the substrate the wall pads will be mounted to.
Recommended Uses: 2' x 4' Safety Wall Pads are an excellent choice to ensure student and athlete safety in school gymnasiums, commercial gyms, home gyms, atheletic studios, fitness facilities, training facitilities, gymnastics and cheer facilities, trampoline parks, schools, sensory rooms, play areas, adventure and entertainment parks, escape rooms, public park facilities, rec centers, as elementary school gym wall padding, highschool gym wall padding, college gym wall padding, and much more.
- •Antibacterial treated, Antimicrobial, Anti-Fungus, Anti-Mildew, UV treated covering.
- •5-year limited warranty.
- •Passes ASTM E84 (Class A), NFPA-701 & Cal 117 FR tests C.P.S.I.A Certified.
- •2” polyethylene foam meets standards for ASTM 2440.
- •Qualifies for the LEEDv4.1 EQ credit: Low-emitting materials.
- Size
- 2' x 4'
- Items/box
- 1.0000
- Variants
- 14
Available Variants (14)
| Swatch | SKU | Color | Status | In stock |
|---|---|---|---|---|
 | 11933_16103_67145 | Red | Active | No |
 | 11933_16103_67146 | Champion Blue | Active | No |
 | 11933_16103_67147 | Navy Blue | Active | No |
 | 11933_16103_67148 | Black | Active | No |
 | 11933_16103_67149 | Gray | Active | No |
 | 11933_16103_83906 | Pink | Active | No |
 | 11933_16103_83907 | Lime Green | Active | No |
 | 11933_17246_72687 | Red | Active | No |
 | 11933_17246_72688 | Champion Blue | Active | No |
 | 11933_17246_72689 | Navy Blue | Active | No |
 | 11933_17246_72690 | Black | Active | No |
 | 11933_17246_72691 | Gray | Active | No |
 | 11933_17246_83908 | Pink | Active | No |
 | 11933_17246_83909 | Lime Green | Active | No |
Installation
INSTALLATION
1. 1” Nail Margin top and bottom along width edge attached directly to wall using appropriate hardware for wall type. Refer to ASTM standards for height above finished floor. 4” AFF to bottom of foam current.
2. No Nail Margin. Aluminum Z-Clip mounted to wall top and bottom (as aligned with panel size and mounting height) using appropriate hardware for wall type. Opposing Z-Clip mounted to panel. Once hardware is securely fastened to wall and panel, panels can be nested into wall side Z-Clip. 4” AFF to bottom of panel.
Maintenance
Full Specifications
| calculator type | none |
| can backorder | true |
| color axis | B2459 |
| color display name | Red |
| esd max | 40 |
| esd min | 20 |
| exact length inches | {"amount":"48.0000","unit":"INCH"} |
| exact weight lbs | {"amount":"17.0000","unit":"POUND"} |
| exact width inches | {"amount":"24.0000","unit":"INCH"} |
| flooring designer | none |
| gmc shipping weight | 17.0000 |
| has corner border center | false |
| inventory | false |
| is variant kit | false |
| items per box | 1.0000 |
| lf features | ["mold_mildew_resistant"] |
| material | Polyethylene Foam |
| max order qty | 99999 |
| min order qty | 1 |
| nominal length inches | {"amount":"48.0000","unit":"INCH"} |
| nominal width inches | {"amount":"24.0000","unit":"INCH"} |
| origin | made_in_usa |
| pdp icon 5 | diy_friendly |
| percent overage | 5 |
| primary color filter | red |
| qty increment | 1 |
| quick ship | false |
| shipping program | none |
| size | 2' x 4' |
| sku | 11933_16103_67145 |
| status color | color_launched |
| status product | product_launched |
| status variant | variant_launched |
| tf made in usa | made_in_usa |
| tf rubber format | gym_wall_padding |
| unit of measure | each |
| variant axis | A2453 |
| variant display name | Nail Margin |
| visible when oos | true |
| warranty filter | ["5_year"] |
