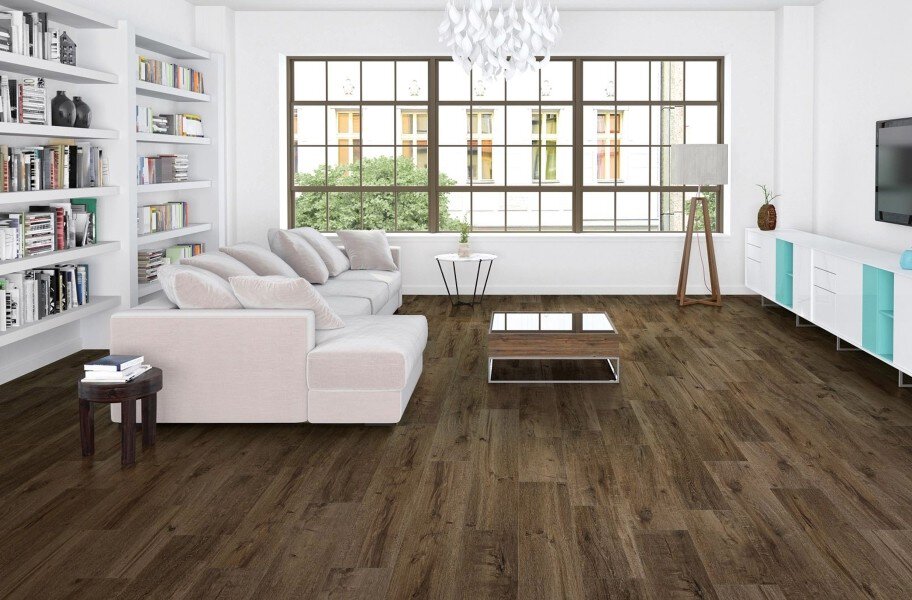

COREtec Grande Waterproof Vinyl Planks
Model · 13694

COREtec Grande Waterproof Vinyl Planks

vinyl tiles planks made in china
floating waterproof kid safe pet friendly
The COREtec Grande Waterproof Vinyl Planks are the 100% waterproof, kidproof and petproof floor.  They are quieter, warmer and softer than other floors and deliver the comfort and benefits you care about.   The realistic texture makes them stylish.  They are stain resistant, easy to clean and easy to install.  With a 30MIL wear layer, COREtec Grande Waterproof Vinyl Planks come in multiple lengths making them a unique and exciting option for your home!
  • 100% waterproof
  • Multiple plank lengths included - 28", 55" and 82"
  • 30mil wear layer
  • Enhanced painted bevel edges
  • For use anywhere in the home
Size
9" Wide x 28", 55" & 82" Long
Coverage
20.6700 case
Items/box
1.0000
Variants
8
Warranty
Limited Lifetime Residential. 15-Year Limited Commercial.

Available Variants (8)

Swatch SKU Color Status In stock
Makkah Oak
13694_20109_86096 Makkah Oak Active No
Lotte Oak
13694_20109_86097 Lotte Oak Active No
Goldin Oak
13694_20109_86098 Goldin Oak Active No
Petronas Oak
13694_20109_86099 Petronas Oak Active No
Willis Oak
13694_20109_86100 Willis Oak Active No
Marina Oak
13694_20109_86101 Marina Oak Active No
Vista Oak
13694_20109_86103 Vista Oak Active No
Empire Oak
13694_20109_86104 Empire Oak Active No

Installation

Installation is simple and is commonly done by our customers. Installation of waterproof planks and tiles is as follows: Complete any necessary floor prep. Start with the tongue side facing the wall. After the initial starter board, press the end seam of the second plank into the end seam of the first plank, and then lock them together by laying the plank down. Continue working left to right. Install the first plank in the second row by inserting the tongue into the groove of the plank in the first row. This is best done with a low angle of the plank. Insert the long side seam at a slight angle first. As the top surfaces meet, rotate the plank down into the locked position. Engage the end seam, using a rubber mallet if necessary. Planks may be cut with the use of a crosscut power saw. Continue installing planks removing any gaps using a tapping block and a scrap of flooring to cover the tapping block. Be careful not to damage In*Step tongue and groove. Protect all exposed edges by installing wall molding and/or transition strips. Make sure that no plank will be secured in any way to the subfloor.

Maintenance

Maintenance of the floor typically includes: Daily or weekly vacuuming or dust mopping of dirt, grit, dust etc. Use felt pads under chair and furniture legs to prevent scratching of the flooring surface. Place door mats at all entrances to prevent tracked in dirt, rocks, moisture, and other debris. Avoid using rubber backed mats as they can stain the flooring surface over time. When mopping, use a damp and never a wet mop. Clean up spills immediately to prevent damage to the floor.

Full Specifications

alt unit of measure sqft
attached underlayment true
bazaarvoice brand coretec
calculator type case
can backorder true
color axis B5001
color display name Makkah Oak
core wpc
coverage 20.6700
edge profile ["enhanced_painted_bevel"]
esd max 7
esd min 2
exact weight lbs {"amount":"61.0000","unit":"POUND"}
exact width inches {"amount":"9.0000","unit":"INCH"}
flooring designer none
gmc shipping weight 61.0000
has corner border center false
inventory false
is variant kit false
items per box 1.0000
lf features ["attached_underlayment"]
lf shipping program ["free_ship"]
locking system click_tap_angle_glueless_locking_system
map price [{"amount":"0.00","currency":"USD"}]
max order qty 99999
min order qty 1
nominal sq ft 20.67
nominal width inches {"amount":"9.0000","unit":"INCH"}
origin made_in_china
pdp icon 5 diy_friendly
pdp icon 6 stain_resistant
percent overage 5
qty increment 1
quick ship false
sample id S15196
shipping program free_ship
size 9" Wide x 28", 55" & 82" Long
sku 13694_20109_86096
status color color_launched
status product product_launched
status variant variant_launched
unit of measure case
variant axis A2330
variant display name 9" x Multi x 15 mm (20.67 sq ft/case)
wear layer {"amount":"0.7000","unit":"MILLIMETER"}
