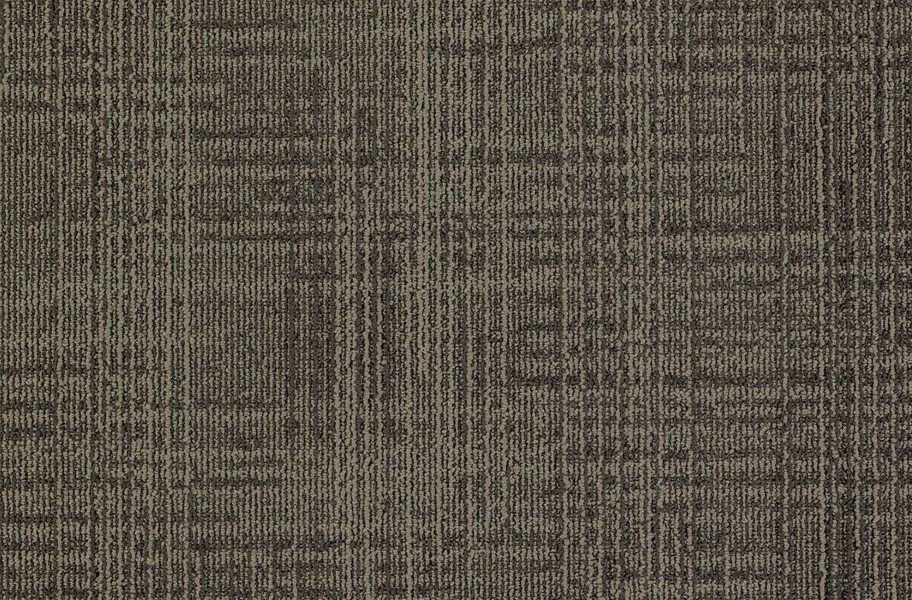

Mannington Relay Carpet Tiles
Relay Carpet Tile by Mannington was specifically designed for both commercial and home installations. Made of high-quality Antron® Lumena™ Type 6, 6 Nylon and receiving a 3.5 TARR rating, these durable carpet tiles will hold up to the heaviest of traffic. As an added bonus, these modern carpet tiles are also designed with Colorsafe and XGuard technologies for ultimate stain and fade resistance. Manningto Relay Carpet Tiles are available in several dynamic cross pattern color options ensuring this carpet floor tile will match any room's decor.
Recommended Installation Pattern - Monolithic, Vertical Brick Ashlar, Horizontal Brick Ashlar, Quarter-Turn, Shuffled/Random.
Material - Antron® Lumena™ nylon type 6,6 fiber is engineered with long-lasting protection against the top performance attributes – stain, soil, and texture. These tiles have an Infinity® 2 Modular backing which is engineered with superior tuft bind, moisture resistance, and superior dimensional stability.
Size - 24" x 24"
Pile Thickness - 0.113" (2.11 mm)
Gauge - 5/64
Weight - ~0.625 Lbs. per square foot.
Traffic Type - Heavy - (This Traffic type works well across all uses).
Origin - Made in the USA.
- •Made with Colorsafe and XGuard technologies for ultimate stain and fade resistance
- •CRI Green Label Plus Certified
- •Limited lifetime wear & backing warrantly
- •No moisture testing required
- •35 TARR rating made for rigorous traffic
- Size
- 24" x 24"
- Coverage
- 72.0000 case
- Items/box
- 16.0000
- Variants
- 8
Available Variants (8)
| Swatch | SKU | Color | Status | In stock |
|---|---|---|---|---|
 | 13906_20621_88372 | Bluetooth | Active | No |
 | 13906_20621_88373 | Dial Tone | Active | No |
 | 13906_20621_88374 | Haptics | Active | No |
 | 13906_20621_88375 | Hotspot | Active | No |
 | 13906_20621_88376 | Operator | Active | No |
 | 13906_20621_88377 | Rotary | Active | No |
 | 13906_20621_88378 | Switchboard | Active | No |
 | 13906_20621_88379 | Tether | Active | No |
Installation
Maintenance
Full Specifications
| alt unit of measure | sqft |
| bazaarvoice brand | mannington |
| calculator type | case |
| can backorder | true |
| cares assessment | notapplicable |
| color axis | B4443 |
| color display name | Bluetooth |
| coverage | 72.0000 |
| esd max | 10 |
| esd min | 5 |
| exact length inches | {"amount":"24.0000","unit":"INCH"} |
| exact weight lbs | {"amount":"45.0000","unit":"POUND"} |
| exact width inches | {"amount":"24.0000","unit":"INCH"} |
| flooring designer | none |
| gmc shipping weight | 45.0000 |
| has corner border center | false |
| inventory | false |
| is variant kit | false |
| items per box | 16.0000 |
| lf shipping program | ["free_ship"] |
| material | Nylon |
| max order qty | 99999 |
| min order qty | 1 |
| nominal length inches | {"amount":"24.0000","unit":"INCH"} |
| nominal sq ft | 72 |
| nominal width inches | {"amount":"24.0000","unit":"INCH"} |
| origin | made_in_usa |
| pdp icon 5 | easy_to_clean |
| percent overage | 5 |
| primary color filter | blue |
| qty increment | 1 |
| quick ship | false |
| sample id | S18194 |
| shipping program | free_ship |
| size | 24" x 24" |
| sku | 13906_20621_88372 |
| status color | color_launched |
| status product | product_launched |
| status variant | variant_launched |
| tf carpet tile type | ["high_foot_traffic"] |
| tf format | tiles |
| tf made in usa | made_in_usa |
| unit of measure | case |
| variant axis | A1466 |
| variant display name | 24" x 24" tile (72 sq ft / case) |
| visible when oos | true |
