3/4" Diamond Top Horse Mats - Kits
Our 3/4" Diamond Top Horse Mats were originally designed to be used as horse stall mats however these mats have quickly become a multi-use barn and animal mat and are frequently used for cows, pigs, and dogs as well. These rubber horse mats have a diamond top pattern design for added traction and will not harbor or grow bacteria. The equine mats are also easy to install, help reduce bedding costs in barns as well as help to keep animals safe and protected from cold hard subfloors. The diamond top interlocking mats also come with an industry-leading 12-year warranty. Note : These interlocking mats are not designed to be used as gym mats and are not generally recommended for that purpose.
Material - Diamond top interlocking mats are constructed of recycled crumb rubber that is revulcanized. Revulcanization means that the rubber mats are essentially heated back together to form one solid non-porous mat rather than glued back together. This is the process that forms the strongest and most durable recycled rubber mats available.
Sizes - 10'x10' (Interlocked size 9'6"x9'6"), 10'x12' (Interlocked size 9'10"x11'10"), and 12'x12' (Interlocked size 11'10"x11'10").

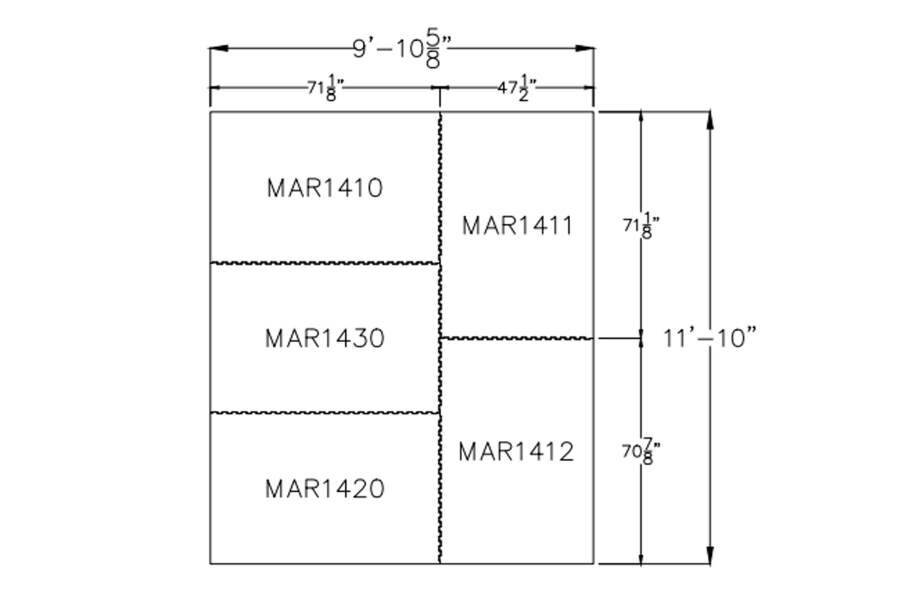

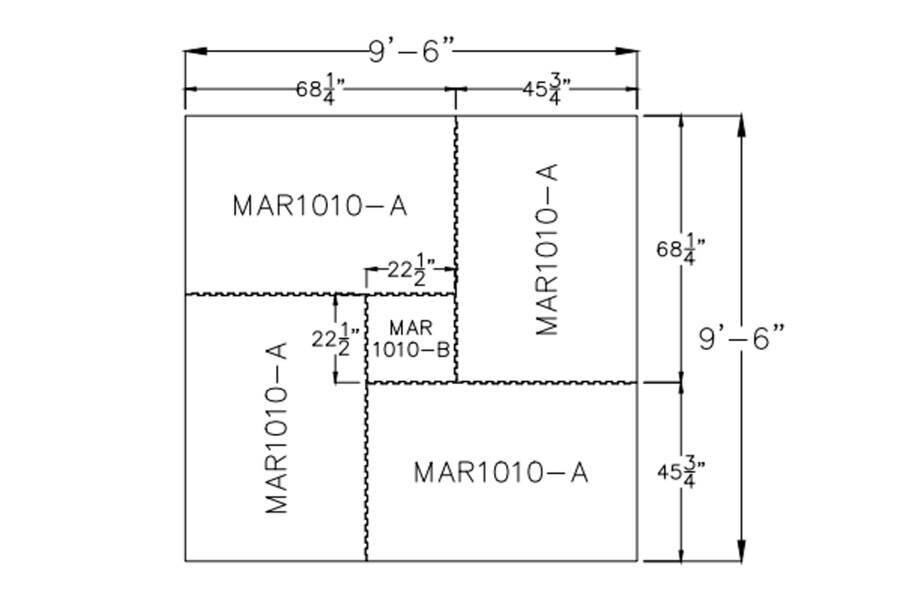

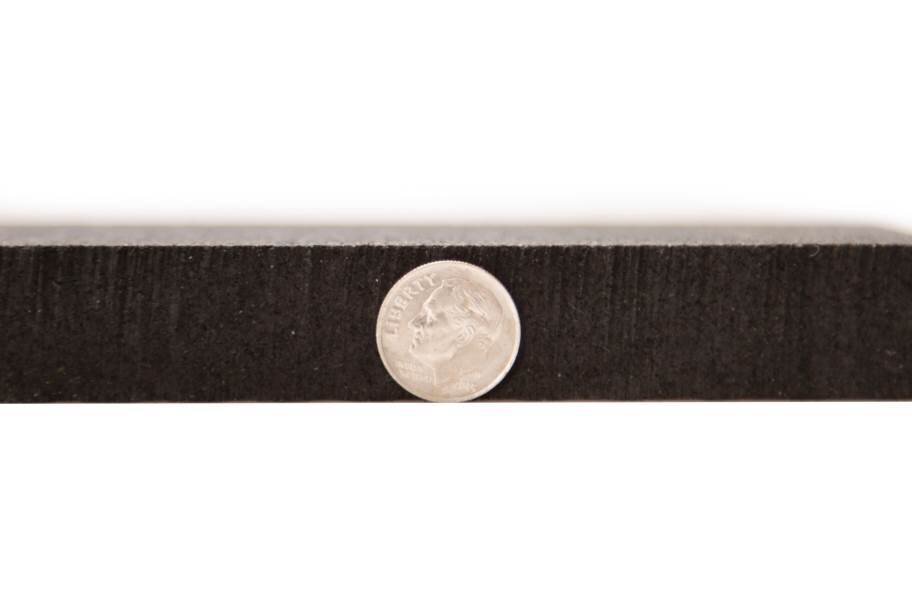

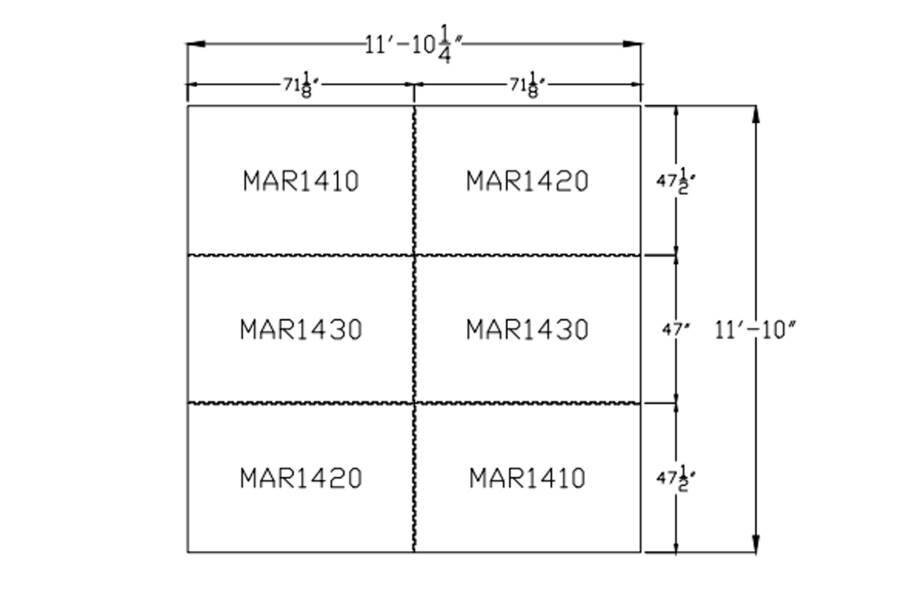

Thickness - 3/4" Kit Contents: 10' x 10' Kit - 4 - 45-3/4" x 68-1/4" corners, 1 22-1/2" x 22-1/2" center. 10' x 12' Kit - 3 - 47-1/2" x 71-1/8" corners, 1 - 47" x 71-1/8" border, 1 - 47-1/2" x 71-7/8" corners. 12' x 12' Kit - 4 - 47-1/2" x 71-1/8" corners, 2 - 47" x 71-1/8" borders.
Weight - The 3/4" diamond top mats weight 4.2 lb/sq-ft.
- •Extremely heavy duty interlocking Horse Stall Mat System
- •Non-porous, mold & mildew resistant, anti-microbial, low odor
- •Premium Vulcanized Rubber. 12-year warranty
- •Custom sizing is available. Call, email, or chat for detail.
- •*Mat sizes are nominal
- Size
- 10' x 10'
- Coverage
- 100.0000 mat
- Items/box
- 1.0000
- Variants
- 3
Available Variants (3)
| Swatch | SKU | Color | Status | In stock |
|---|---|---|---|---|
 | 13956_20764_89064 | Black | Active | No |
 | 13956_20765_89065 | Black | Active | No |
 | 13956_20766_89066 | Black | Active | No |
Installation
Maintenance
Full Specifications
| alt unit of measure | sqft |
| calculator type | none |
| can backorder | true |
| category filters | ["rubber_category","rubber_mats_category"] |
| color axis | B1198 |
| color display name | Black |
| coverage | 100.0000 |
| esd max | 35 |
| esd min | 15 |
| exact length inches | {"amount":"120.0000","unit":"INCH"} |
| exact weight lbs | {"amount":"500.0000","unit":"POUND"} |
| exact width inches | {"amount":"120.0000","unit":"INCH"} |
| flooring designer | none |
| gmc shipping weight | 630.0000 |
| has corner border center | false |
| installation | ["temporary_or_semi_permanent"] |
| inventory | false |
| is variant kit | false |
| items per box | 1.0000 |
| lf features | ["mold_mildew_resistant","vulcanized"] |
| material | Recycled Crumb Rubber |
| max order qty | 99999 |
| min order qty | 1 |
| nom thickness | 3/4" |
| nominal length inches | {"amount":"120.0000","unit":"INCH"} |
| nominal sq ft | 100 |
| nominal width inches | {"amount":"120.0000","unit":"INCH"} |
| origin | made_in_usa |
| pdp icon 5 | pet_friendly |
| pdp icon 6 | vulcanized |
| primary color filter | black |
| qty increment | 1 |
| quick ship | false |
| shipping program | none |
| size | 10' x 10' |
| sku | 13956_20764_89064 |
| status color | color_launched |
| status product | product_launched |
| status variant | variant_launched |
| tf made in usa | made_in_usa |
| tf rubber format | rubber_mats |
| tf rubber thickness | ["three_quarter"] |
| unit of measure | mat |
| variant axis | A1110 |
| variant display name | 10' x 10' |
| visible when oos | true |
| warranty filter | ["12_year"] |
