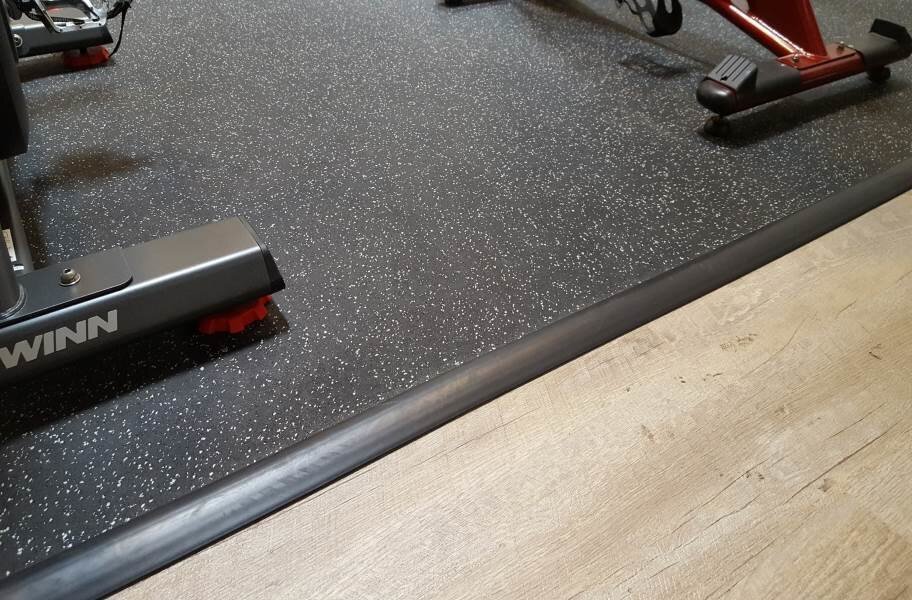

NextGen XL Rubber Rolls - Pro Series
Introducing our exclusive NextGen XL Rubber Rolls - Pro Series: wider coverage, easier installation, superior results! Step into the future of durable and versatile rubber flooring with NextGen XL Rubber Rolls - Pro Series. For years, the industry standard for rubber rolls has been a 4-foot width. Now, we've innovated to bring you a game-changing 5-foot wide roll, designed to make your flooring projects easier, faster, and more cost-effective, whether you're a seasoned professional or a dedicated DIY enthusiast.
NextGen XL Rubber Rolls - Pro Series offer the same exceptional durability and high-performance you expect from our top-selling premium rubber flooring rolls, making it ideal for a wide range of applications. Think home gyms, basements, garages, workshops, playrooms, pet areas, commercial spaces, and more – anywhere you need a resilient, sound-dampening, and easy-to-clean surface.
Experience the NextGen XL Advantage: The Power of 5-Foot Width
The extra width of NextGen XL Rubber Rolls offers numerous advantages:
✅ Fewer Seams, Smoother Finish: Cover more area with each roll, reducing seams and creating a cleaner, more hygienic surface with fewer places for dirt and moisture to accumulate.
✅ Efficiency & Cost Savings: The 5-foot width reduces cutting and waste, saving time, labor, and materials.
✅ Faster Installation: More coverage per roll means quicker setup for home gyms or commercial spaces, speeding up the entire project.
✅ Greater Layout Flexibility: The additional width allows for better space utilization and fewer awkward cuts, providing more design options.
Upgrade to the NextGen XL Rubber Rolls - Pro Series today and experience the big difference that a little extra width can make!
Weight: 1/4" is ~1.6 lbs/sqft, 8mm and 3/8" are ~2.2 lbs/sqft, 3/8", 1/2" is ~3 lbs/sqft
Please Note:
- This product contributes up to 5 points in two LEED categories (see Spec Sheet for details).
- Color variations may occur between separate orders. For the best consistency, we recommend ordering all rolls at the same time.
Supports LEED Certification Goals Designed to contribute up to 5 LEED points across two categories. See spec sheet for details.
- •5-foot width + custom lengths: minimize waste, perfect fit
- •Cost & labor savings with fewer seams
- •Superior durability for lasting performance
- •Less cutting, more efficient installation
- •Versatile for indoor & outdoor applications
- Coverage
- 5.0000 linear_foot
- Items/box
- 1.0000
- Variants
- 40
Available Variants (40)
| Swatch | SKU | Color | Status | In stock |
|---|---|---|---|---|
 | 14027_21091_90597 | Black | Active | No |
 | 14027_21091_90598 | Gray - 10% | Active | No |
 | 14027_21091_90599 | Blue - 10% | Active | No |
 | 14027_21091_90600 | Blue Gray - 10% | Active | No |
| | 14027_21091_90623 | Black - Quick Ship | Active | No |
| | 14027_21091_90624 | Gray 10% - Quick Ship | Active | No |
| | 14027_21091_90625 | Blue 10% - Quick Ship | Active | No |
| | 14027_21091_90626 | Blue Gray - 10% - Quick Ship | Active | No |
 | 14027_21091_90726 | Confetti Regrind | Active | No |
| | 14027_21091_90729 | Confetti Regrind - Quick Ship | Active | No |
| | 14027_21092_90601 | Black | Active | No |
| | 14027_21092_90602 | Gray - 10% | Active | No |
| | 14027_21092_90603 | Blue - 10% | Active | No |
| | 14027_21092_90604 | Blue Gray - 10% | Active | No |
| | 14027_21092_90627 | Black - Quick Ship | Active | No |
| | 14027_21092_90628 | Gray - 10% Quick Ship | Active | No |
| | 14027_21092_90629 | Blue 10% - Quick Ship | Active | No |
| | 14027_21092_90630 | Blue Gray 10% - Quick Ship | Active | No |
| | 14027_21092_90727 | Confetti Regrind | Active | No |
| | 14027_21092_90728 | Confetti Regrind - Quick Ship | Active | No |
| | 14027_21093_90605 | Black | Active | No |
| | 14027_21093_90606 | Gray - 10% | Active | No |
| | 14027_21093_90607 | Blue - 10% | Active | No |
| | 14027_21093_90608 | Blue Gray - 10% | Active | No |
| | 14027_21093_90631 | Black - Quick Ship | Active | No |
| | 14027_21093_90632 | Gray - 10% - Quick Ship | Active | No |
| | 14027_21093_90633 | Blue - 10% - Quick Ship | Active | No |
| | 14027_21093_90634 | Blue Gray - 10% - Quick Ship | Active | No |
| | 14027_21093_90730 | Confetti Regrind | Active | No |
| | 14027_21093_90731 | Confetti Regrind - Quick Ship | Active | No |
| | 14027_21094_90609 | Black | Active | No |
| | 14027_21094_90610 | Gray - 10% | Active | No |
| | 14027_21094_90611 | Blue - 10% | Active | No |
| | 14027_21094_90612 | Blue Gray - 10% | Active | No |
| | 14027_21094_90635 | Black - Quick Ship | Active | No |
| | 14027_21094_90636 | Gray - 10% - Quick Ship | Active | No |
| | 14027_21094_90637 | Blue - 10% - Quick Ship | Active | No |
| | 14027_21094_90638 | Blue Gray - 10% - Quick Ship | Active | No |
| | 14027_21094_90732 | Confetti Regrind | Active | No |
| | 14027_21094_90733 | Confetti Regrind - Quick Ship | Active | No |
Installation
When installing rolled rubber flooring, it is important to choose the right installation method for your project. The most common methods of adhering rubber rolls to the subfloor are:
A: Double-Sided Tape Installation
- Ensure that the subfloor is clean, dry, and free of any debris.
- Loosely lay the rubber rolls in the room to achieve your desired layout. Allow the rolls to relax for 24-48 hours to ensure proper installation.
- Note: Rolls may be directional, so make sure the color matches on each roll. If the roll colors do not match, flip them or turn them 180 degrees to ensure the color matches.
- Cut the rubber rolls to fit the room using a straight edge and a utility knife with a fresh blade. Leave a gap around the perimeter roughly the thickness of the rolls being used to account for expansion and contraction.
- Roll up the rubber rolls at one end of the room. Apply double-sided tape to the subfloor along the perimeter of each roll.
- Place the rubber rolls back into position on top of the double-sided tape.
B: Glue Installation
- Ensure that the subfloor is clean, dry, and free of any debris or moisture.
- Loosely lay the rubber rolls in the room to achieve your desired layout. Allow the rolls to relax for 24-48 hours to ensure proper installation.
- Note: Rolls may be directional, so make sure the color matches on each roll. If the roll colors do not match, flip them or turn them 180 degrees to ensure the color matches.
- Cut the rubber rolls to fit the room using a straight edge and a utility knife with a fresh blade. Leave a gap around the perimeter roughly the thickness of the rolls being used to account for expansion and contraction.
- Roll up the rubber rolls at one end of the room. Spread a light layer of polyurethane adhesive that is 10 feet long (maximum) and unroll the flooring into the adhesive 10 feet at a time.
- Repeat step 5 for every 10 feet of roll length until the entire roll has been unrolled into its desired position.
- After all of the rolls have been glued down, it is recommended to use a 100-pound roller on the floor to guarantee good adherence to the subfloor. If a roller is not available, walking on the flooring in small choppy steps may also work.
Maintenance
Keeping your rubber flooring rolls clean and looking their best is easy with these simple maintenance tips:
- Sweep or vacuum loose debris regularly to prevent buildup and minimize the risk of slips and falls.
- For a deeper clean, simply damp mop the rubber rolls with a mild soap and water solution. We recommend using Dawn dish detergent or Tide laundry detergent.
- Do not use any solvent or oil-based cleaners like Pinesol, Lysol, Murphy's Oil Soap, WD40, paint thinner, or similar products. These cleaners can break down the flooring over time and cause damage.
Full Specifications
| alt unit of measure | sqft |
| banner msg int | If you need to match a 4' width roll with a roll from this product, please notate the order so that it gets sent to Evanston AKA Fleck. |
| calculator type | roll |
| can backorder | true |
| category filters | ["rubber_category","rubber_roll_category"] |
| color axis | B1198 |
| color display name | Black |
| coverage | 5.0000 |
| esd max | 40 |
| esd min | 30 |
| exact height inches | {"amount":"0.2500","unit":"INCH"} |
| exact length inches | {"amount":"12.0000","unit":"INCH"} |
| exact weight lbs | {"amount":"8.0000","unit":"POUND"} |
| exact width inches | {"amount":"60.0000","unit":"INCH"} |
| flooring designer | none |
| has corner border center | false |
| installation | ["float_or_glue","glue_down"] |
| installation location | ["Indoor"] |
| inventory | false |
| is variant kit | false |
| items per box | 1.0000 |
| lf features | ["mold_mildew_resistant","recycled_content"] |
| material | Recycled Rubber buffings and colored EPDM virgin rubber fleck |
| max order qty | 9999 |
| max roll legnth | 120.0000 |
| min order qty | 1 |
| min rollcut | 1.0000 |
| nom thickness | 1/4" |
| nominal height inches | {"amount":"0.2500","unit":"INCH"} |
| nominal length inches | {"amount":"12.0000","unit":"INCH"} |
| nominal sq ft | 5 |
| nominal width inches | {"amount":"60.0000","unit":"INCH"} |
| origin | made_in_usa |
| pdp icon 5 | made_in_usa |
| pdp icon 6 | custom_order |
| percent overage | 5 |
| primary color filter | black |
| qty increment | 1 |
| quick ship | false |
| roll width | {"amount":"5.0000","unit":"FEET"} |
| sample id | S25008 |
| shipping program | none |
| sku | 14027_21091_90597 |
| status color | color_launched |
| status product | product_launched |
| status variant | variant_launched |
| tf made in usa | made_in_usa |
| tf rubber format | rubber_rolls |
| tf rubber thickness | ["eight_mm","half_inch","quarter_inch","three_eighths"] |
| tf sport | ["crossfit"] |
| unit of measure | linear_foot |
| variant axis | 1_4_5wide |
| variant display name | 1/4" Thick 5' Wide |
| visible when oos | true |
| warranty filter | ["5_year"] |
