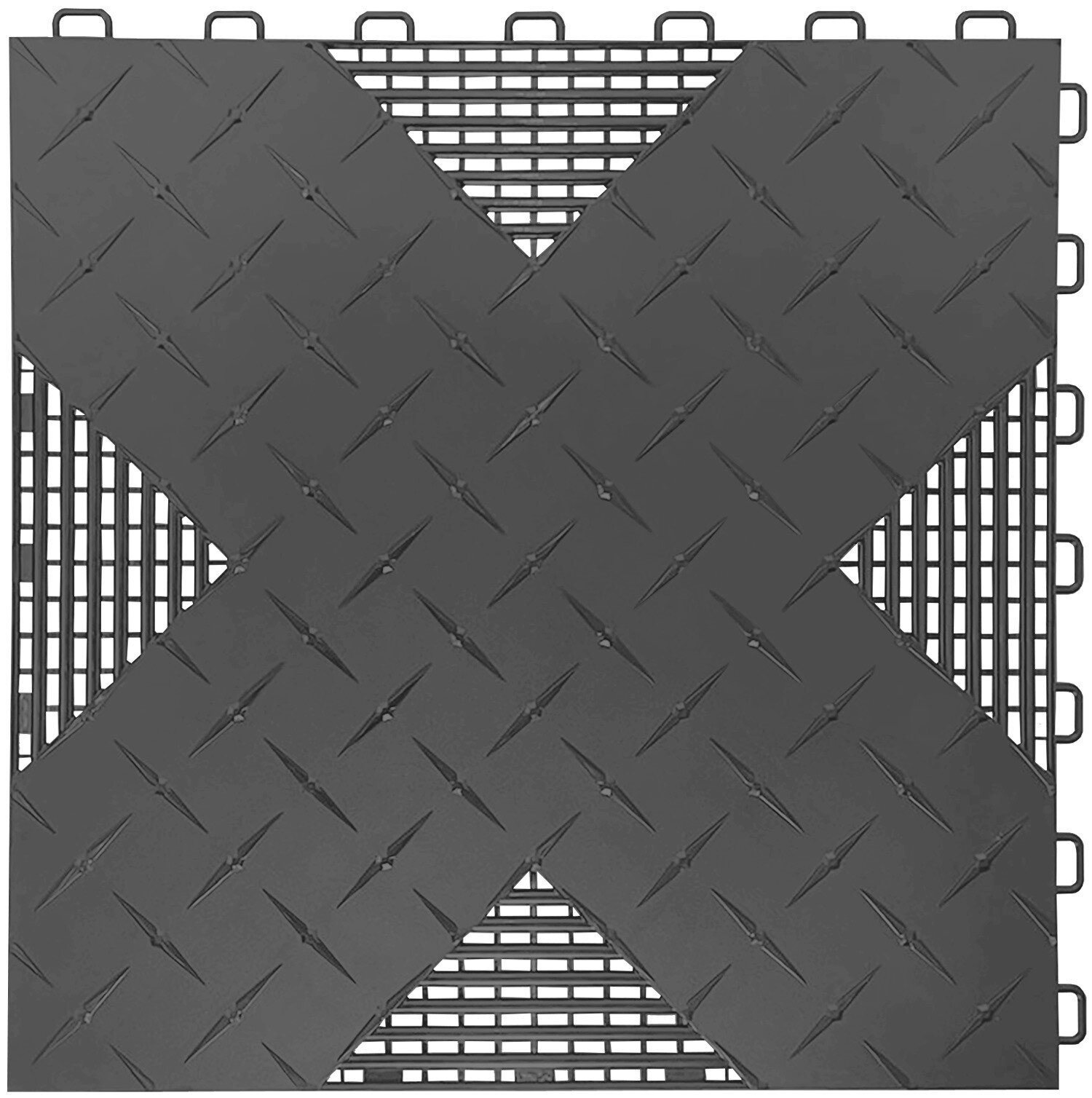

Hybrid-X Vented Diamond Garage Tiles - 2 sqft/tile
Introducing the stylish Hybrid-X Diamond Vented Garage Floor Tiles, the revolutionary designer garage flooring that's set to transform your garage into a sleek and functional space. Designed in a distinctive X-shape, this innovative tile installs twice as fast as traditional garage tiles, covering an impressive 2 square feet each. Bigger, thicker, and stronger, the Hybrid-X Diamond Vented Garage Floor Tiles stand out with their modern dagger-like diamond plate pattern and patented flow-through design, combining the best of both worlds for superior concrete ventilation. Say goodbye to the dilemma of choosing between style and functionality—the Hybrid-X tiles offer both, making these high-performing garage tiles the ultimate choice for a stylish, durable, and efficient garage flooring solution. Upgrade your garage today and experience the perfect blend of innovation, style, and performance with Hybrid-X Diamond Vented Garage Floor Tiles. Backed by a 10-year limited warranty.
Material: Polypropylene
Size: 17" x 17"
Thickness: .65" or 16.5mm
Weight: Approx 1.7 lbs. per tile.
Chemical Resistant: Yes
Car Jack Approved: No
Surface Finish: Gloss Slip Resistant: Yes
Rolling Weight: 50,000 lbs.
Colorfast: Yes
Recommended Uses: Ideal choice for garage flooring, workshop flooring, basement flooring, utlity room flooring, laundry room flooring.
- •American-Made in Cleveland, TN.
- •Extra large size (2 square feet per tile) allows for turbo installation twice as fast.
- •Flow through areas on all 4 sides allow air flow circulation on concrete.
- •Finger lock. Easy extra large interlocking system with 24 giant locking connections.
- •Cool Dagger diamond plate design.
- Size
- 17" X 17" x 16.5mm - 2 sqft/tile
- Coverage
- 2.0000 tile
- Items/box
- 1.0000
- Variants
- 21

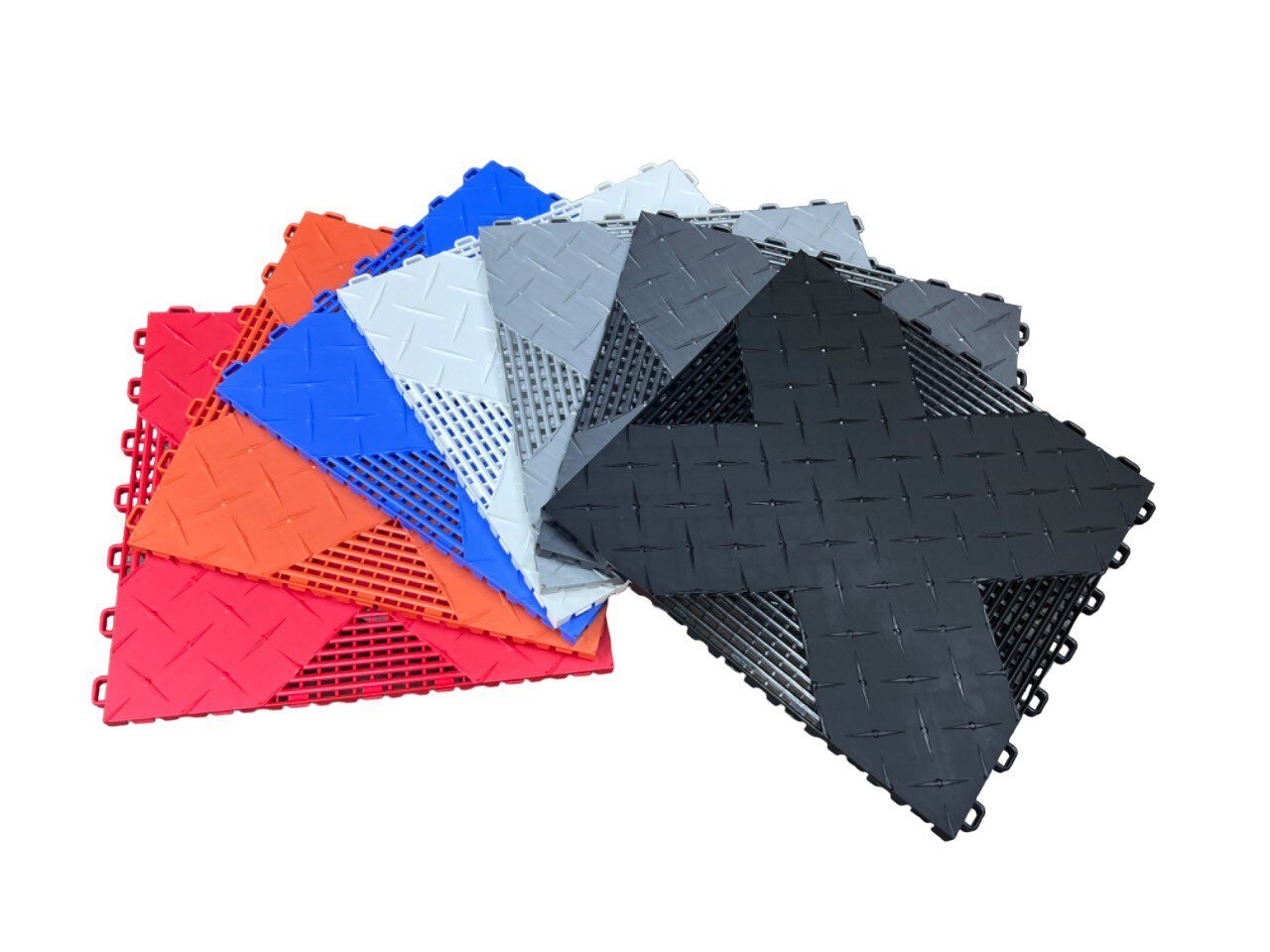

Available Variants (21)
| Swatch | SKU | Color | Status | In stock |
|---|---|---|---|---|
 | 15000_21000_90000 | Black | Active | No |
 | 15000_21000_90001 | Silver | Active | No |
 | 15000_21000_90002 | Dark Gray | Active | Yes |
 | 15000_21000_90003 | White | Active | No |
 | 15000_21000_90004 | Racing Red | Active | No |
 | 15000_21000_90005 | Orange | Active | No |
 | 15000_21000_90006 | Royal Blue | Active | No |
| | 15000_21001_90007 | Black | Active | No |
| | 15000_21001_90008 | Silver | Active | No |
| | 15000_21001_90009 | Dark Gray | Active | No |
| | 15000_21001_90010 | White | Active | No |
| | 15000_21001_90011 | Racing Red | Active | No |
| | 15000_21001_90012 | Orange | Active | No |
| | 15000_21001_90013 | Royal Blue | Active | No |
| | 15000_21002_90014 | Black | Active | No |
| | 15000_21002_90015 | Silver | Active | No |
| | 15000_21002_90016 | Dark Gray | Active | No |
| | 15000_21002_90017 | White | Active | No |
| | 15000_21002_90018 | Racing Red | Active | No |
| | 15000_21002_90019 | Orange | Active | No |
| | 15000_21002_90020 | Royal Blue | Active | No |
Installation
Installation Instructions for Hybrid-X Garage Flooring Tile:
Step 1: Prepare the Subfloor
- Ensure your subfloor is clean, dry, and free from dirt, dust, grease, or any other debris before starting installation.
Step 2: Start Installation
- Begin in the front left corner of the garage.
- Make sure the female side (loops) of the tile is facing away from the wall.
- Snap the tiles together by pressing down until the hidden interlock system clicks into place.
- Continue laying tiles along the left wall and then the adjacent wall, filling the rest of the area with whole tiles.
Step 3: Cutting Tiles
- When you reach a wall or an obstacle, measure the area and cut the tiles to fit using a tile cutter or a power saw with a fine-toothed blade.
- Leave about a 3/4" space between the tiles and the wall or obstruction to allow for expansion.
Step 4: Finishing Touches
- Once all tiles are in place, snap in the edge pieces if needed.
- Ensure all tiles are securely locked together for a smooth, finished look.
Maintenance
Care and Maintenance for Hybrid-X Garage Flooring Tile:
Regular Cleaning:
- Vacuum or sweep any loose crumbs, dust, or debris from the surface of the tiles.
- For tougher dirt or stains, hose off the tiles or damp mop them using a mild soap and water mixture.
Spill Management:
- Gasoline won’t penetrate plastic tiles, but if fuel pools on or under the tiles, they may warp. Clean up fuel spills quickly to prevent warping.
Handling Car Jacks:
- These tiles are not car jack approved. Use your jack directly on the concrete or place a plywood board or steel plate under the jack to avoid damaging the tiles.
Managing Stains:
- While Hybrid-X tiles are chemical resistant, colors can vary between batches, particularly for graphite and gunmetal. Order extra tiles to maintain color continuity for repairs or replacements.
Tile Replacement:
- If any tile becomes damaged, snap out the affected tile and replace it with a new one.
Full Specifications
| alt unit of measure | sqft |
| amazon asin | B0D2JJ617G |
| amazon sku | 15000_21000_90000 |
| ca prop 65 warning | Prop 65 Warning(s) |
| calculator type | sqft |
| can backorder | true |
| car jack approved | false |
| category filters | ["garage_category","garage_tiles"] |
| chemical resistant | true |
| color axis | B1198 |
| color display name | Black |
| coverage | 2.0000 |
| esd max | 3 |
| esd min | 1 |
| exact height inches | {"amount":"0.6500","unit":"INCH"} |
| exact length inches | {"amount":"17.0000","unit":"INCH"} |
| exact weight lbs | {"amount":"1.7000","unit":"POUND"} |
| exact width inches | {"amount":"17.0000","unit":"INCH"} |
| flooring designer | none |
| gloss | ["semi_gloss"] |
| gmc shipping weight | 50.1700 |
| has corner border center | false |
| home page feature flag | new_arrival |
| image general sku url 1 | https://d2q5qaygbbwnnw.cloudfront.net/image/230444301506/image_btj58h88vt3lj3789t4rv3f52e |
| image general sku url 2 | https://d2q5qaygbbwnnw.cloudfront.net/image/230444301506/image_klism2oe0l7cvbk5coq81big4o |
| image general sku url 3 | https://d2q5qaygbbwnnw.cloudfront.net/image/230444301506/image_59c85o7m3l08h1340spv8m1d0o |
| installation | ["interlocking","temporary_or_semi_permanent"] |
| interlock style | hidden_snap_together |
| inventory | false |
| is variant kit | false |
| items per box | 1.0000 |
| lf features | ["chemical_resistant","drainage"] |
| lf shipping program | ["quick_ship"] |
| material | Polypropylene |
| max order qty | 1000000 |
| min order qty | 1 |
| nom thickness | 0.65" (16.5mm) |
| nominal height inches | {"amount":"0.6500","unit":"INCH"} |
| nominal sq ft | 2 |
| origin | made_in_usa |
| pdp icon 5 | interlocking |
| pdp icon 6 | easy_to_clean |
| percent overage | 5 |
| primary color filter | black |
| qty increment | 1 |
| quick ship | true |
| shipping program | quick_ship_free |
| size | 17" X 17" x 16.5mm - 2 sqft/tile |
| sku | 15000_21000_90000 |
| slip resistant | yes |
| status color | color_discontinued |
| status product | product_launched |
| status variant | variant_discontinued |
| tf garage tile type | rigid |
| tf made in usa | made_in_usa |
| unit of measure | tile |
| UPC | 840032956674 |
| variant axis | A2437 |
| variant display name | 17" x 17" Interlocking Garage Tile - 2sq/ft per tile |
| visible when oos | true |
| warranty filter | ["10_year"] |
