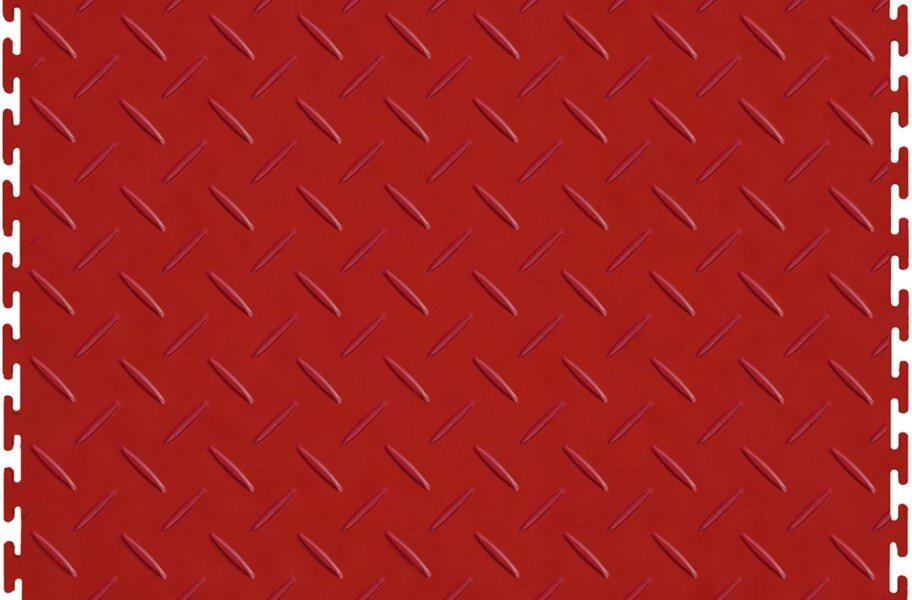

Diamond Flex Tiles

Installation Instructions for Diamond Flex Tiles

Preparation

1. Surface Cleaning:
   • Ensure the subfloor is clean, dry, and free of debris, grease, oil, and other contaminants.
2. Subfloor Suitability:
   • Suitable for installation over concrete, wood, or any hard, flat surface.
3. Acclimatization:
   • Allow the Flex Nitro Tiles to acclimate in the installation area for at least 24 hours at room temperature.

Installation

1. Planning Layout:
   • Lay out the tiles in the desired pattern before snapping them together to ensure you are satisfied with the design.
   • Plan your pattern ahead of time, especially if using multiple colors, to avoid mistakes.
2. Connecting Tiles:
   • Begin installation from one corner of the room and work your way out.
   • Align the tiles so that the tabs of one tile fit into the loops of the next tile.
   • Gently press down until you hear a click, indicating the tiles are locked together.
3. Cutting to Fit:
   • Trim the tiles to fit around edges and corners using a utility knife with a sharp blade and a straight edge.
   • Leave a small gap (approximately 1/4 inch) around the edges to allow for expansion and contraction.
4. Securing the Tiles:
   • For smaller areas, the weight of the tiles may be sufficient to keep them in place.
   • For larger areas or high-traffic zones, use double-sided tape or adhesive around the perimeter and seams for extra stability.
   • Apply the adhesive according to the manufacturer’s instructions.

Post-Installation

1. Rolling:
   • Use a floor roller to ensure the tiles adhere properly and to remove any air bubbles.
2. Initial Cleaning:
   • After installation, clean the floor with a mild soap and water solution to remove any installation debris.
3. Inspection:
   • Inspect the installation to ensure all edges are secure and seams are properly sealed.

Maintenance

• Follow the regular cleaning and maintenance instructions to keep your Flex Nitro Tiles in optimal condition.

Contact Information

• Customer Service:
  • For any issues or further assistance, please contact our dedicated Customer Service team.

Maintenance Instructions for Flex Tiles

Regular Cleaning

• Sweeping or Vacuuming:
  • Regularly sweep or vacuum the tiles to remove loose crumbs, dust, and debris.
• Damp Mopping:
  • Occasionally damp mop the tiles using a mixture of mild soap and water.
  • Recommended soaps: Dawn dish detergent or Tide laundry detergent.

Protecting Your Tiles

• Silicone Sealant Protection:
  • Each tile is coated with a protectant silicone sealant.
  • Tiles may become scuffed or scratched during installation or while moving large objects.
• Reducing Scratches and Scuffs:
  • Use Armstrong’s Shine Keeper to help reduce the appearance of scratches and scuff marks.

Stain Prevention and Removal

• Street Tar and Light-Colored Tiles:
  • Note: This is not a stain-proof product.
  • Street tar can stain light-colored tiles. Use Purple Power cleaner to remedy this.
• Performance Tires and Light-Colored Tiles:
  • Performance tires can cause staining on light-colored tiles.
  • To remove tire marks, you might need to replace the affected tiles or use darker tiles to disguise the stains.
  • If staining persists, contact our Customer Service team for assistance.

Contact Information

• Customer Service:
  • For any issues or further assistance, please contact our dedicated Customer Service team at (877) 531-6471.
