Diamond Grid-Loc Tiles™

Installation Instructions for Grid-Loc Diamond Series Tiles:

Step 1: Prepare the Subfloor

• Make sure the garage floor is clean, dry, and free from dust, dirt, or debris.
• Sweep or vacuum the surface before installation.



Step 2: Plan the Layout

• Measure the area and decide on the tile layout. Start from a corner or the center of the room.
• Leave a 1/2" gap between the tiles and walls or stationary objects to allow for expansion.



Step 3: Snap the Tiles Together

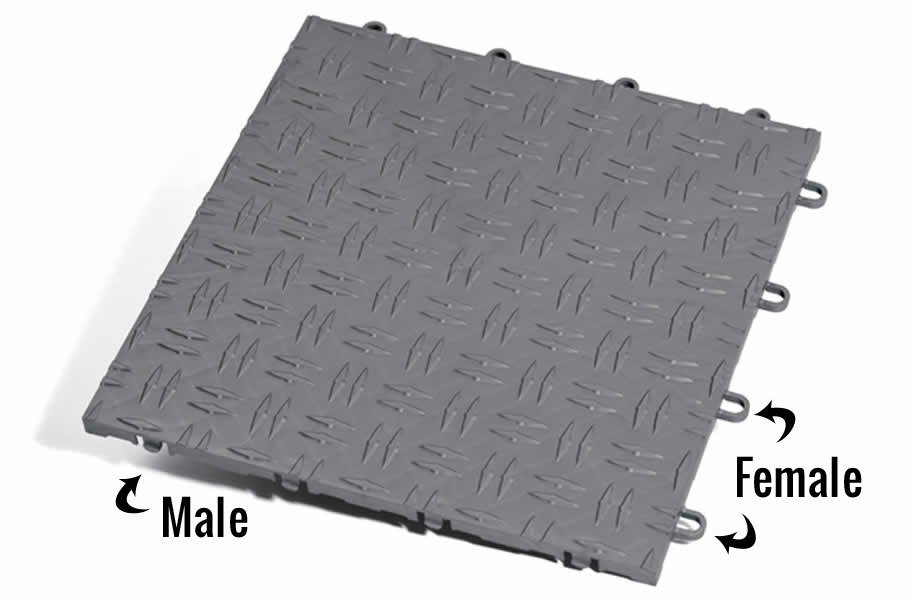

• Align the edges of each tile and snap them together using the hidden interlock system.
• Continue connecting tiles until the floor area is fully covered.
• If necessary, trim the tiles using a utility knife to fit around obstacles like walls or corners.



Step 4: Final Adjustments

• After covering the entire area, you can add edge pieces for a cleaner look.
• Ensure each tile is securely locked into place.



Step 5: Avoid Car Jack Damage

• These tiles are not car jack approved. Always use your jack directly on the concrete floor to avoid damage to the tiles.

Care and Maintenance for Grid-Loc Diamond Series Tiles:

Regular Cleaning:

• Sweep or vacuum the tiles regularly to remove loose crumbs, dust, or debris.
• Occasionally damp mop the tiles using a mild soap and water mixture. Some commonly used soaps include Dawn dish detergent or Tide laundry detergent.



Spill Management:

• The tiles are resistant to oil, grease, antifreeze, and many household chemicals, but spills should still be wiped up promptly for safety.



Handling Stains:

• While the tiles are stain-resistant, clean up spills as soon as possible to prevent any long-term damage or staining.



Tile Replacement:

• If a tile becomes damaged, snap out the affected tile and replace it with a new one.
