Model · 3212

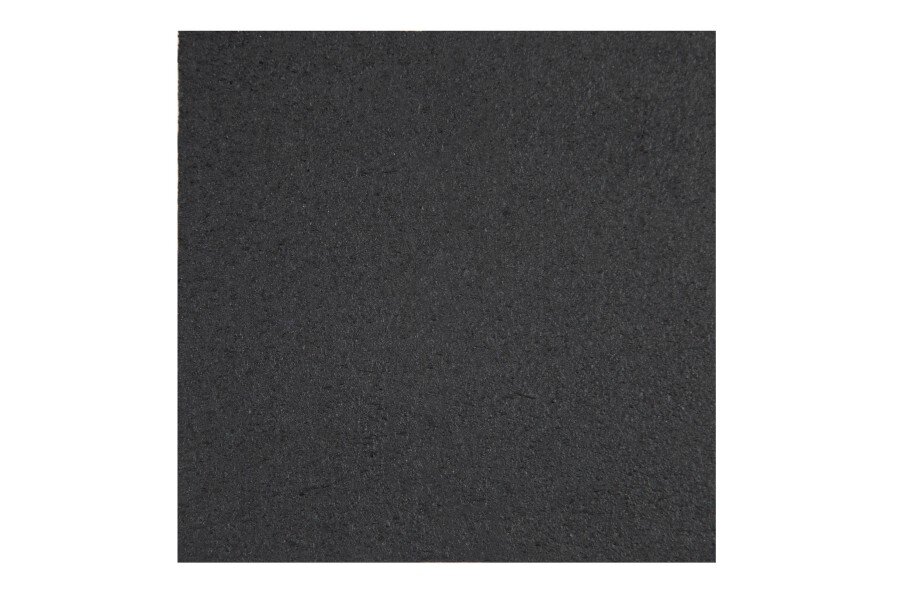

3/4" Diamond Top Horse Mats

rubber mats made in usa Rubber

Dog Kennel Flooring Equine & Livestock Stall Mats Truck & Trailer Flooring - Deleted All Rubber Flooring Commercial Rubber Flooring Trailer Flooring

made in usa clean rubber indoor outdoor vulcanized

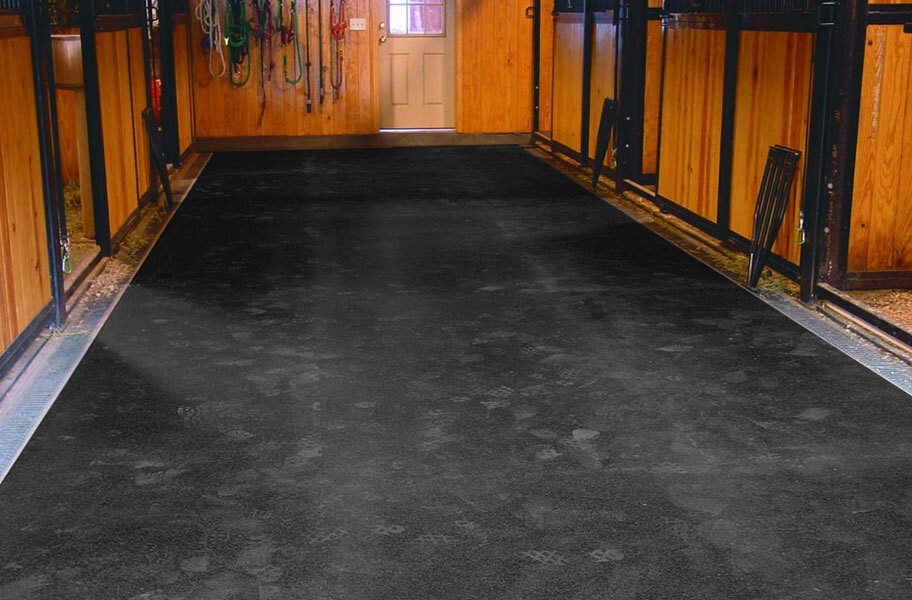

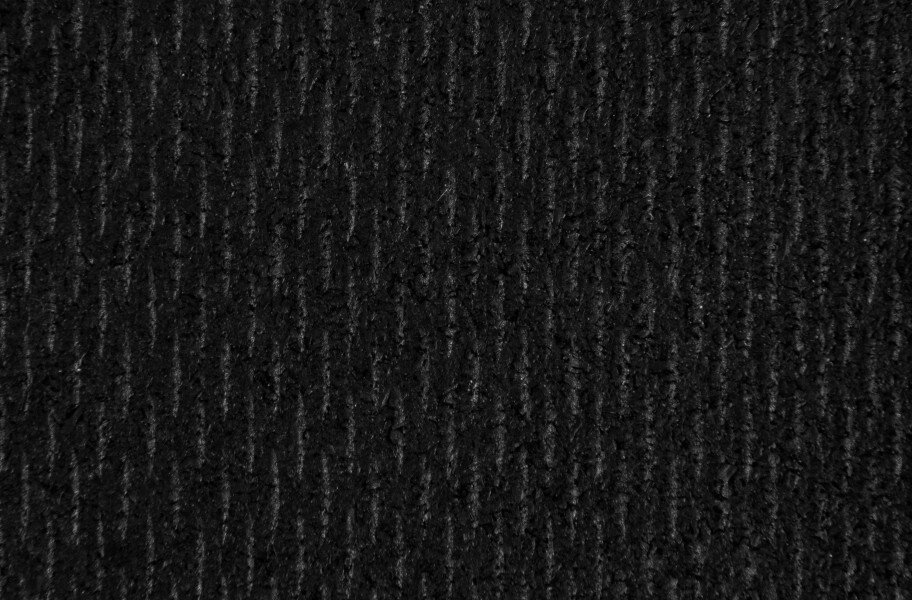

Our 3/4" Diamond Top Horse Mats were originally designed to be used as horse stall mats however these mats have quickly become a multi-use barn and animal mat and are frequently used for cows, pigs, and dogs as well. These rubber horse mats have a diamond top pattern design for added traction and will not harbor or grow bacteria. The equine mats are also easy to install, help reduce bedding costs in barns as well as help to keep animals safe and protected from cold hard subfloors. The diamond top interlocking mats also come with an industry-leading 12-year warranty.

Material – Diamond top mats are constructed of recycled crumb rubber that is revulcanized. Revulcanization means that the rubber mats are essentially heated back together to form one solid non-porous mat rather than glued back together. This is the process that forms the strongest and most durable recycled rubber mats available.

Sizes – 4' x 6'

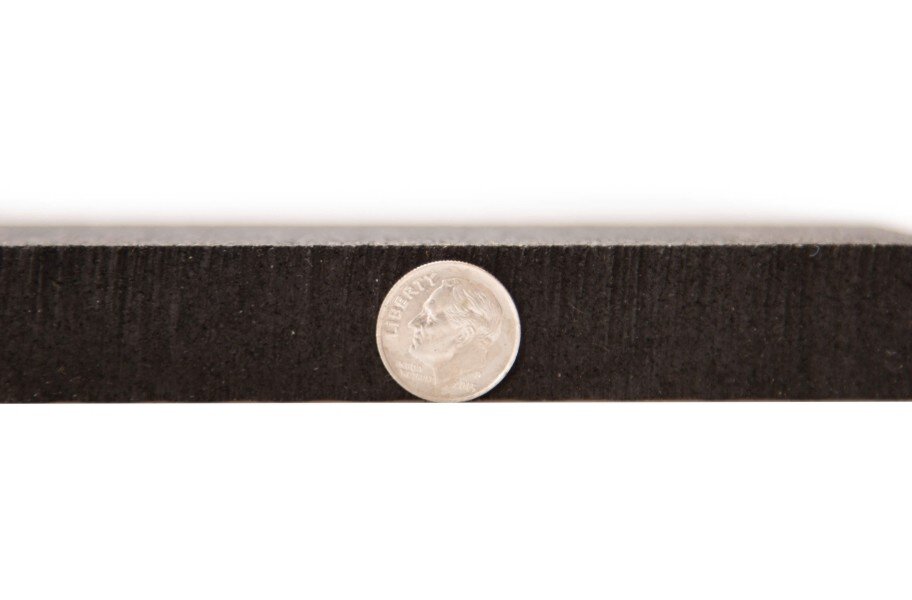

Thickness – 3/4"

Weight – The 3/4” diamond top mats weight 4.2 Lbs. per square foot.

Recommended Uses: The 3/4” thick diamond top mats have demonstrated their versatility as high-quality animal and barn matting solutions, being widely adopted for horse stalls, cow and pig enclosures, as well as for horse trailer flooring. Moreover, these premium mats have been successfully employed as dog kennel flooring, and even as a reliable training surface. In essence, these mats are the ultimate solution for any pet, barn, or animal matting requirements.

Note : These interlocking mats are not designed to be used as gym mats and are not generally recommended for that purpose.

•Made in the USA.
•Vulcanized: extremely heavy-duty rubber mat system.
•Create custom-sized kits to fit any barn stall.
•12-year warranty.
•Rubbr mat sizes are nominal.

Size: 4' x 6'
Items/box: 1.0000
Variants: 1

Warranty

12-Year Warranty.

Available Variants (1)

Swatch	SKU	Color	Status	In stock
	3212_20743_88956	Black	Active	No

Installation

Installation of stall mats is a straightforward process that can be easily performed by the avid do it yourself advocate. Here are the steps to follow:

Our mats can be installed over various surfaces, such as concrete, asphalt, wood, or any level well-compacted surface, including decomposed granite and limestone fines (as long as the fines do not exceed 1/8" in size).
After preparing the subsurface, use the provided stall diagram to guide the placement of the mats.
To account for rubber expansion and contraction in extreme temperatures, we recommend leaving a 1/4" to 1/2" gap between the mat edge and the wall.
Once the mat is in place, a small amount of bedding can be added, and your horse can enter the stall.

Maintenance

Vacuuming any loose dust, dirt, or debris from the flooring surface when necessary. Occasional damp mopping of the rolls with a mild soap and water mixture. Some soaps commonly used include Dawn dish detergent and/or Tide laundry detergent. Note: Do not use any solvent or oil style cleaners such as Pinesol, Lysol, Murphy’s Oil Soap, WD40, paint thinner, etc. since these types of cleaners will break down the flooring over time

Shipping

Installation of stall mats is very simple and easy and commonly done by the consumer. Installation for your floor is as follows: Our mats can be placed over concrete, asphalt, wood or any level well-compacted surface. You can also install them over decomposed granite and limestone fines. For limestone fines, make sure the fines do not exceed 1/8” in size. Once your subsurface is prepared, use the stall diagram provided. Since rubber expands and contracts in extreme temperatures, we recommend a 1/4” to 1/2” gap between the edge of the mat and the wall.

Full Specifications

alt unit of measure	sqft
calculator type	none
can backorder	false
category filters	["rubber_category","rubber_mats_category"]
color axis	B1198
color display name	Black
esd max	35
esd min	15
exact length inches	{"amount":"72.0000","unit":"INCH"}
exact weight lbs	{"amount":"115.2000","unit":"POUND"}
exact width inches	{"amount":"48.0000","unit":"INCH"}
flooring designer	none
gmc shipping weight	3000.0000
has corner border center	false
inventory	false
is variant kit	false
items per box	1.0000
lf features	["mold_mildew_resistant"]
material	Rubber
max order qty	99999
min order qty	1
nom thickness	3/4"
nominal length inches	{"amount":"72.0000","unit":"INCH"}
nominal sq ft	24
nominal width inches	{"amount":"48.0000","unit":"INCH"}
origin	made_in_usa
pdp icon 5	pet_friendly
pdp icon 6	interlocking
percent overage	0
primary color filter	black
qty increment	1
quick ship	false
shipping program	none
size	4' x 6'
sku	3212_20743_88956
status color	color_launched
status product	product_launched
status variant	variant_launched
tf made in usa	made_in_usa
tf rubber format	rubber_mats
tf rubber thickness	["three_quarter"]
unit of measure	mat
variant axis	A1783
variant display name	4' x 6'
visible when oos	true
warranty filter	["12_year"]
