Model · 3667
Swisstrax Diamondtrax Tiles
garage tiles
diy friendly easy to clean interlocking stain resistant

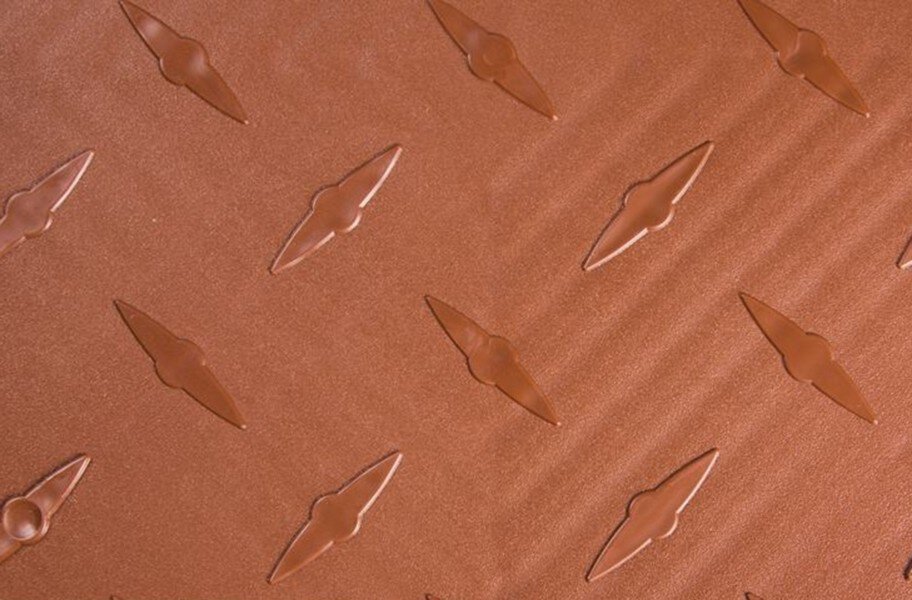

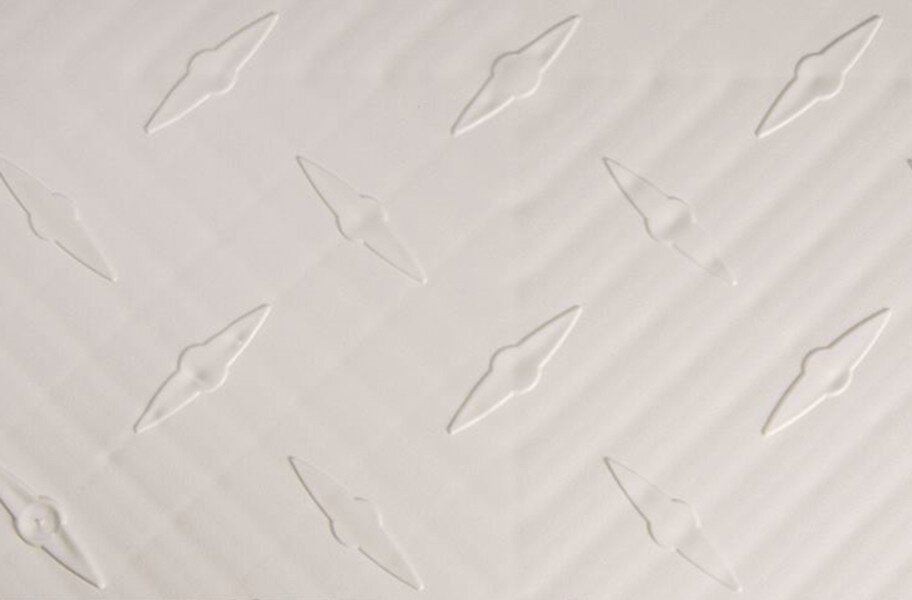

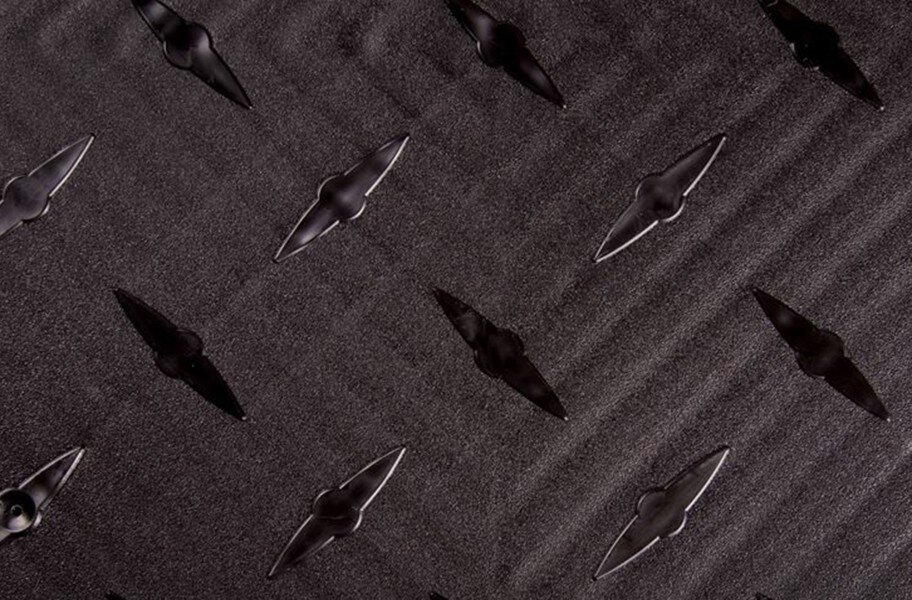

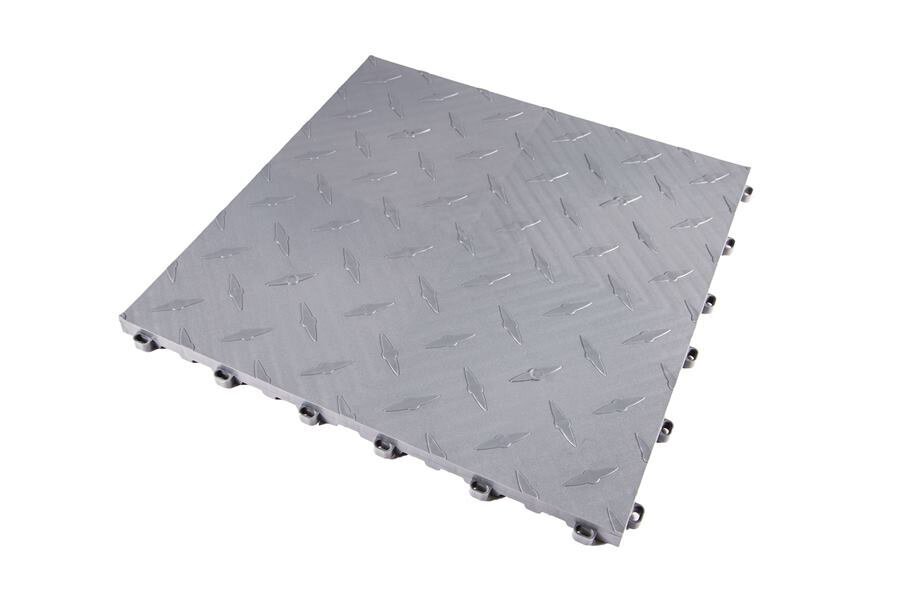

Swisstrax Diamondtrax Tiles by are available in 14 popular colors and have been expertly designed to withstand the harsh environment of any garage. These rugged garage tiles have been formulated to be UV stable and are able to withstand most oils and solvents. These durable garage flooring tiles are very easy to install and measure 15.75” x 15.75" each. These interlocking garage tiles are notably strong, being able to withstand a psi of 3120, and are very slip-resistant featuring a diamond plate pattern that will surely enhance the safety and look of any garage. Swisstax Diamondtrax Tiles also feature an industry leading 15-year warranty, upgrade your garage flooring with the best today!
- •Slip resistant, stain resistant, and UV stable.
- •Built to resist most oils and solvents.
- •Able withstand up to 70,000 lbs of rollover weight and a compressive strength of 3,120 psi.
- •Easy to install and maintain.
- •The leading garage tile- available in multiple colors.
Warranty
15-year warranty.
Installation
Installation of these garage flooring tiles typically includes the following steps:

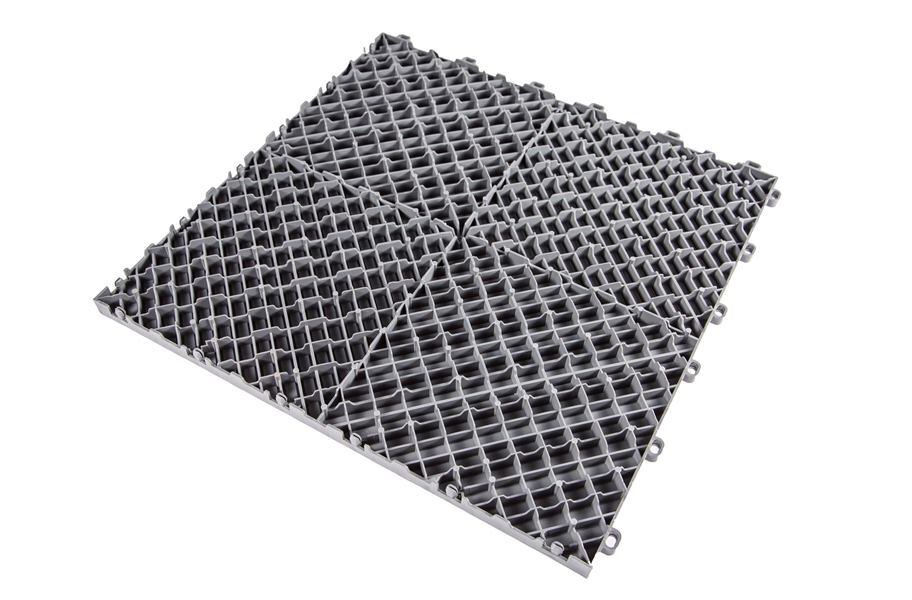

- Clean your sub floor so that it is free of all dirt, dust, grease, or other foreign material. When installing the hard plastic tiles, we recommend starting in the front left corner of the room and working your way out from there. Make sure the female side (loops) of the tile is facing away from the wall.
- After filling the left wall with tiles and the adjacent wall, proceed to fill the rest of the room with whole tiles. When you come up to a wall or object, don’t worry. Just measure the area and cut the tiles with a tile cutter or a power saw with a fine-toothed blade and put the trimmed tiles into place.
- When trimming the tiles into place, make sure you leave about a 3/4” space between the tiles and the wall or obstruction. Once the tiles are in place, you can then snap in the edge pieces, if you purchased them.
Full Specifications
| category filters | ["garage_category","garage_tiles"] |
| flooring designer | none |
| gmc shipping weight | 1.8400 |
| has corner border center | false |
| installation | ["interlocking"] |
| lf features | ["chemical_resistant","uv_stable"] |
| lf shipping program | ["free_ship"] |
| pdp icon 5 | water_resistant |
| status product | product_obsolete |
| tf garage tile type | rigid |
| visible when oos | true |
| warranty filter | ["15_year"] |
