6.5mm Diamond Flex Tiles

garage tiles made in usa Flexible PVC

All Garage Flooring Commercial Garage Flooring - Deleted Garage Tiles Garage Flooring Inc.

made in usa car jack approved diy friendly easy to clean

Maximize your space with our 6.5mm XL Diamond Flex PVC Garage Floor Tiles — perfect for garages, workshops, commercial spaces, and institutional settings! Each XL tile measures a nominal 18"x18" and interlocks seamlessly with a patented hidden interlock system, easily covering ugly, contaminated, or problem subfloors — including cracks, stains, old epoxy, concrete sealers, oils, and grease. Made in the USA from 100% virgin PVC, these tiles deliver a clean, professional finish built to withstand demanding environments.

Whether you’re outfitting a home garage, upgrading a commercial workspace, or covering a concrete floor in an industrial or institutional setting, these PVC interlocking floor tiles deliver the durability and clean look you need — with no adhesive, no advanced tools, and no experience required.

✅ No Adhesive or Special Tools Required: The patented hidden interlock system snaps tiles together quickly and cleanly — no glue, no mess, no downtime. Install directly over any flat, structurally sound surface. Immediate use after installation.

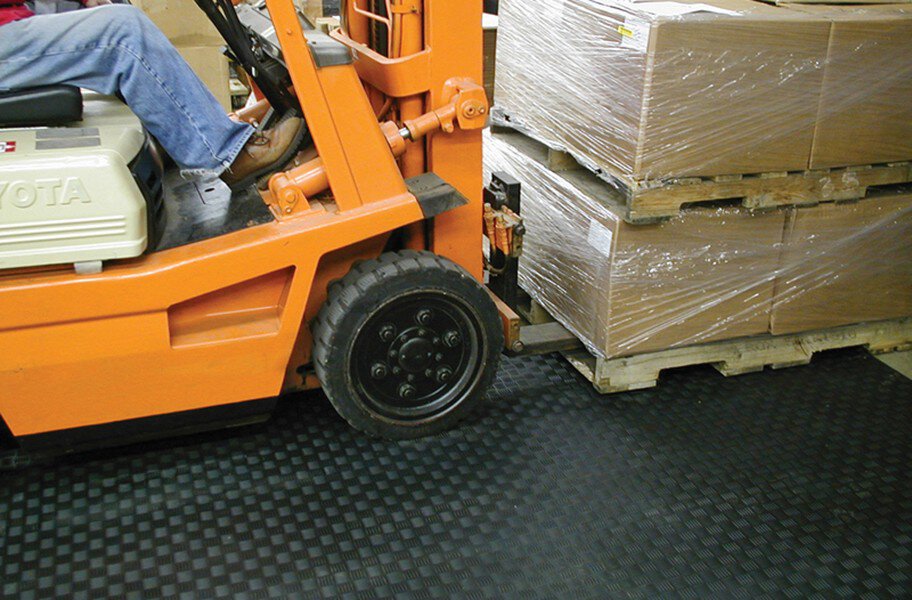

✅ Professional-Grade Durability: Engineered to withstand heavy rolling loads including forklifts and aircraft, heavy static weights, and intense daily use across commercial, industrial, and institutional environments.

✅ Slip-Resistant Surface — Wet or Dry: Provides stable, safe footing in all conditions — reducing standing fatigue, dissipating vibration, and muffling noise underfoot.

✅ Chemical-, Stain-, Impact- & Abrasion-Resistant: Handles oils, grease, solvents, and common floor contaminants with ease. Fire-resistant, UV-resistant, and mold and mildew resistant.

✅ Eco-Friendly & American Made: Crafted from 100% virgin PVC using environmentally friendly plasticizers — contains no phthalates or lead and is 100% recyclable.

Ideal for garages, workshops, gyms, retail environments, healthcare facilities, schools, and government buildings — 6.5mm Diamond Flex Hidden Interlock PVC Floor Tiles are built to handle whatever you throw at them.

Material: 100% Virgin PVC — environmentally friendly plasticizers, no phthalates or lead

Size: 17.68” x 17.68” exact (nominal 18" x 18" / 450mm x 450mm)

Thickness: 1/4” (6.5 mm)

Weight: 4.0 lbs per tile | 1.84 lbs per sq ft

Warranty: 10-Year Limited Warranty

Origin: Made in the USA

•Patented, Hidden Interlocking Design
•10 year warranty, Made in USA
•1653 PSI & class 1 fire rated
•Resistant to water, mold and mildew
•17.68" x 17.68" (450 x 450 mm)

Size: 17.68" x 17.68" x 1/4"
Items/box: 1.0000
Variants: 13

Warranty

30 Day Money Back Guarantee, 10-Year Warranty.

Available Variants (13)

SKU	Color	Status	In stock
5152_4037_17849	Black	Active	No
5152_4037_17851	Dark Gray	Active	No
5152_4037_17852	Light Gray	Active	No
5152_4037_17854	Evergreen	Active	No

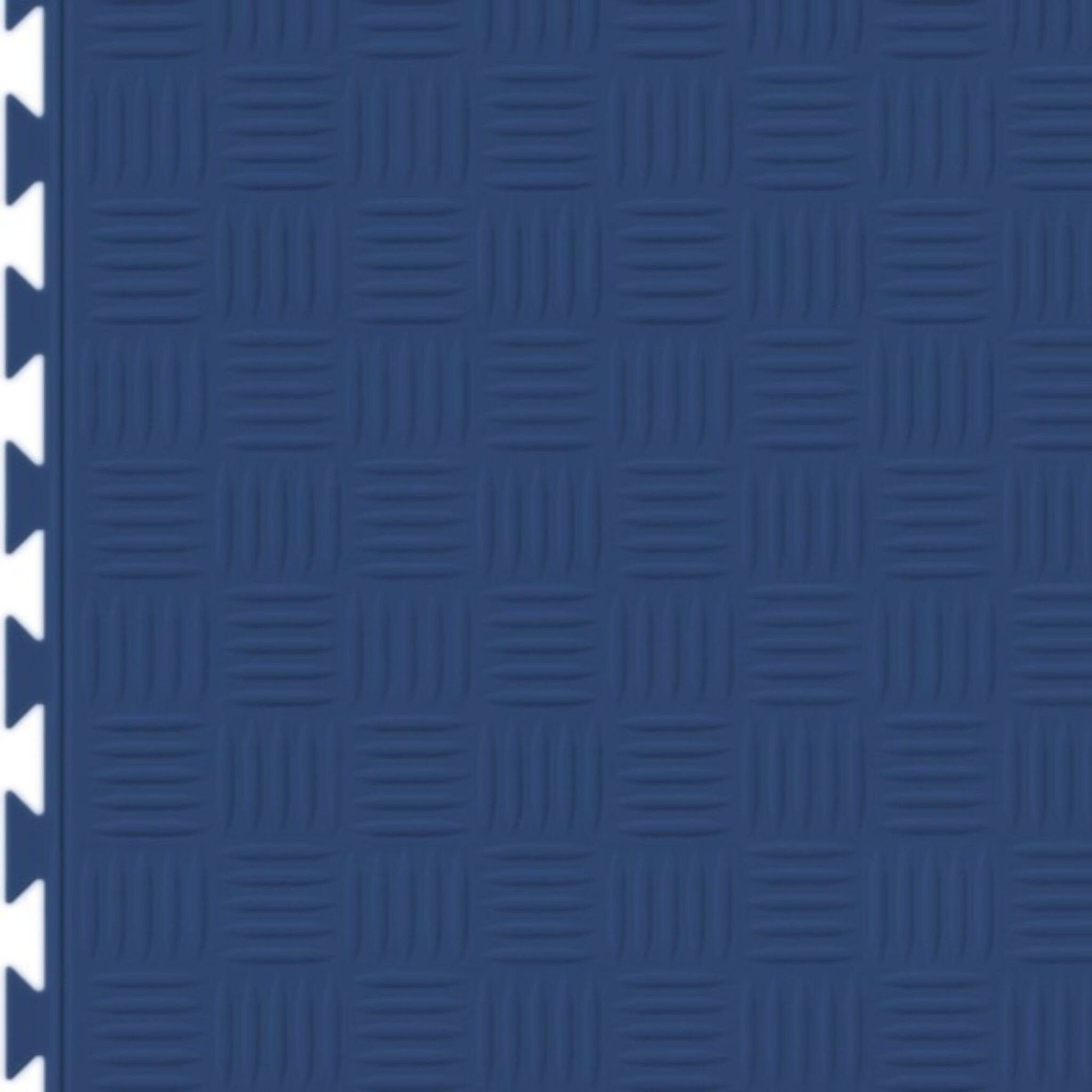

5152_4037_17855	Blue	Active	No
5152_4037_17856	Terracotta	Active	No

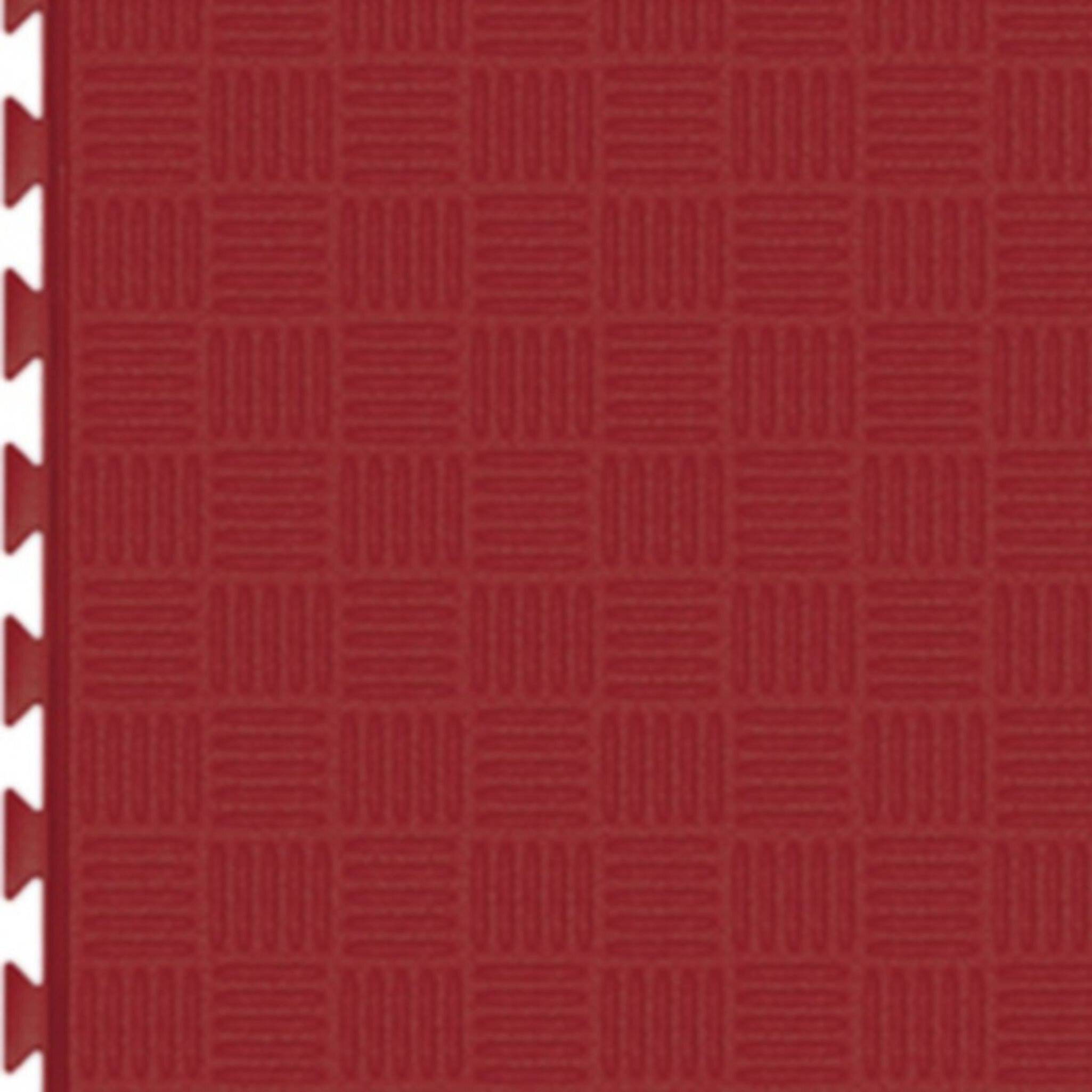

5152_4037_17857	Red	Active	No

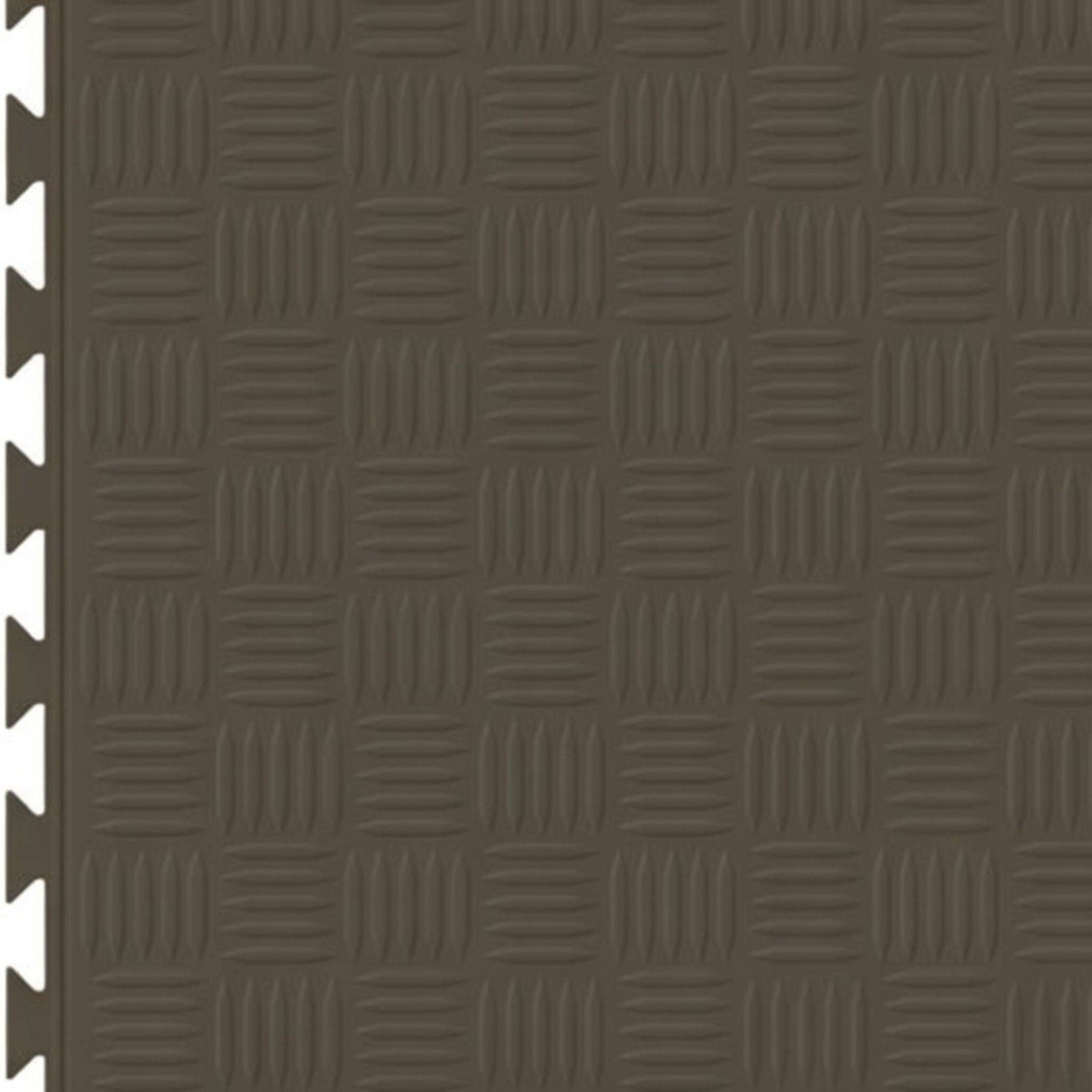

5152_4037_17859	Chocolate	Active	No
5152_4037_17860	Butternut	Active	No
5152_4037_17861	Yellow	Active	No
5152_4037_17862	Canvas	Active	No
5152_4037_17863	White	Active	No
5152_4037_17963	Bright Yellow	Active	No

Installation

Installation of these floor tiles typically includes: Clean your sub floor so that it is free of all dirt, dust, grease, or other foreign material. When installing the hard plastic tiles, we recommend starting in the front left corner of the room and working your way out from there. Make sure the female side (loops) of the tile is facing away from the wall. After filling the left wall with tiles and the adjacent wall, proceed to fill the rest of the room with whole tiles. When you come up to a wall or object, don’t worry. Just measure the area and cut the tiles with a tile cutter or a power saw with a fine-toothed blade and put the trimmed tiles into place. When trimming the tiles into place, make sure you leave about a 3/4” space between the tiles and the wall or obstruction. Once the tiles are in place, you can then snap in the edge pieces, if you purchased them.

Maintenance

Cleaning of these multiuse tiles typically includes: Vacuuming or sweeping any loose crumbs, dust, or debris from the tiles when necessary. Hose off or damp mop the floor tiles with a mild soap and water mixture for tough or caked on dirt and/or stains.

Shipping

Full Specifications

alt unit of measure	sqft
calculator type	sqft
can backorder	true
car jack approved	true
category filters	["garage_category","garage_tiles"]
chemical resistant	true
color axis	B1198
color display name	Black
colorfast	true
esd max	50
esd min	40
exact length inches	{"amount":"17.6800","unit":"INCH"}
exact weight lbs	{"amount":"4.0000","unit":"POUND"}
exact width inches	{"amount":"17.6800","unit":"INCH"}
fd swatch sku url 1	https://d2q5qaygbbwnnw.cloudfront.net/image/230444301506/image_lp5nv789at12jcbqdeja8tjj59
flooring designer	none
gloss	["semi_gloss"]
gmc shipping weight	4.0000
has corner border center	false
interlock style	hidden_interlock
inventory	false
is variant kit	false
items per box	1.0000
lf features	["car_jack_approved","chemical_resistant","colorfast","mold_mildew_resistant"]
lf shipping program	["free_ship"]
material	Flexible PVC
max order qty	99999
min order qty	8
nom thickness	1/4" (6.5mm)
nominal length inches	{"amount":"17.6800","unit":"INCH"}
nominal sq ft	2.17
nominal width inches	{"amount":"17.6800","unit":"INCH"}
origin	made_in_usa
pdp icon 5	interlocking
pdp icon 6	water_resistant
percent overage	5
primary color filter	black
qty increment	1
quick ship	false
shipping program	free_ship
size	17.68" x 17.68" x 1/4"
sku	5152_4037_17849
slip resistant	yes
status color	color_launched
status product	product_launched
status variant	variant_launched
tf garage tile type	flexible
tf made in usa	made_in_usa
unit of measure	tile
variant axis	A2553
variant display name	17.68" x 17.68" Tile (2.17 sq ft)
visible when oos	true
warranty filter	["10_year"]
