Model · 5156
6.5mm Coin Flex Tiles - Designer Series
garage tiles made in usa PVC
made in usa water resistant diy friendly high traffic

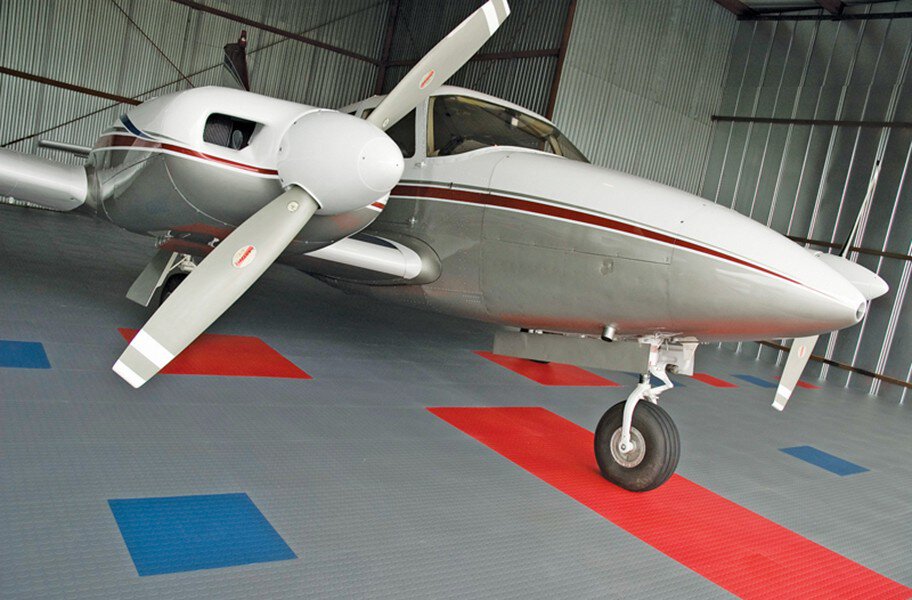

Featuring a patented interlock design, our 6.5mm Coin Flex Tiles - Designer Series is a durable garage flooring option that stands out among the rest. At ¼” thick, this interlocking floor tile has been designed for high traffic and commercial purposes. Low maintenance and modern in look, these easy to install tiles reduce standing fatigue, making them ideal for use in places such as cafeterias, garages, retail shops, and other spaces where long periods of standing occur. Made in the USA, this insulating product is 100% recyclable and backed by a long 10 year warranty.
- •1653 PSI & class 1 fire rated

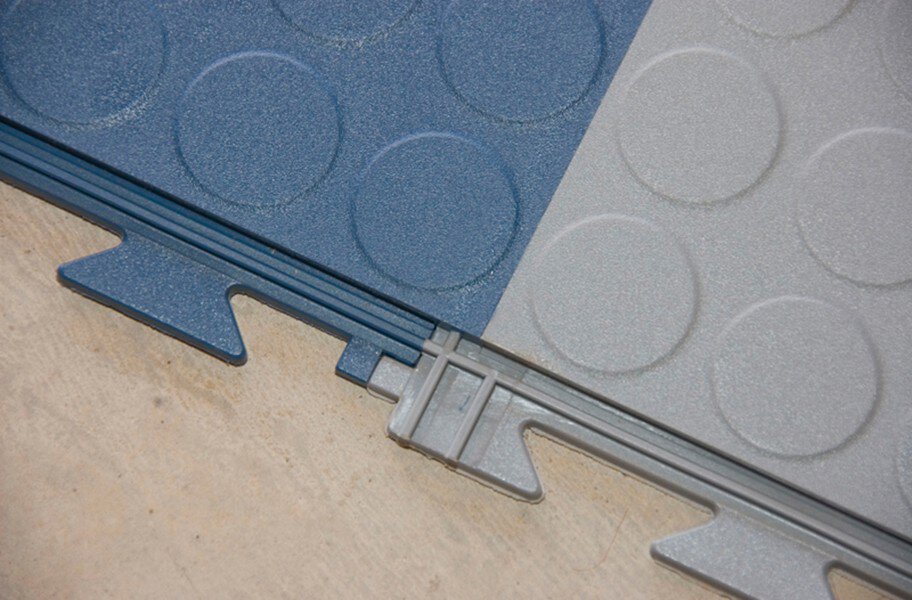

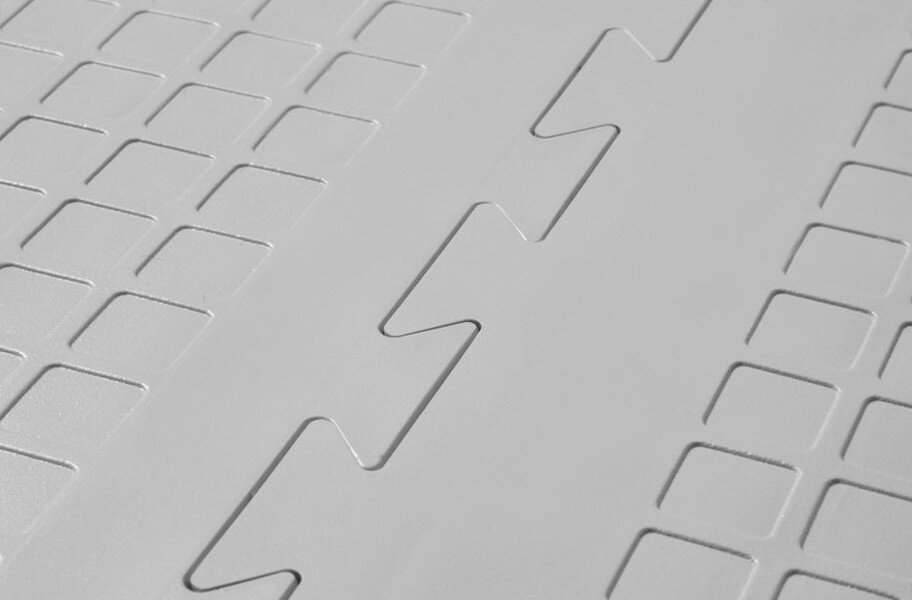

- •Hidden interlocking system
- •Resistant to water, mold, and mildew
- •Easy to install and maintain
- •Meets ASTM E 648
- Size

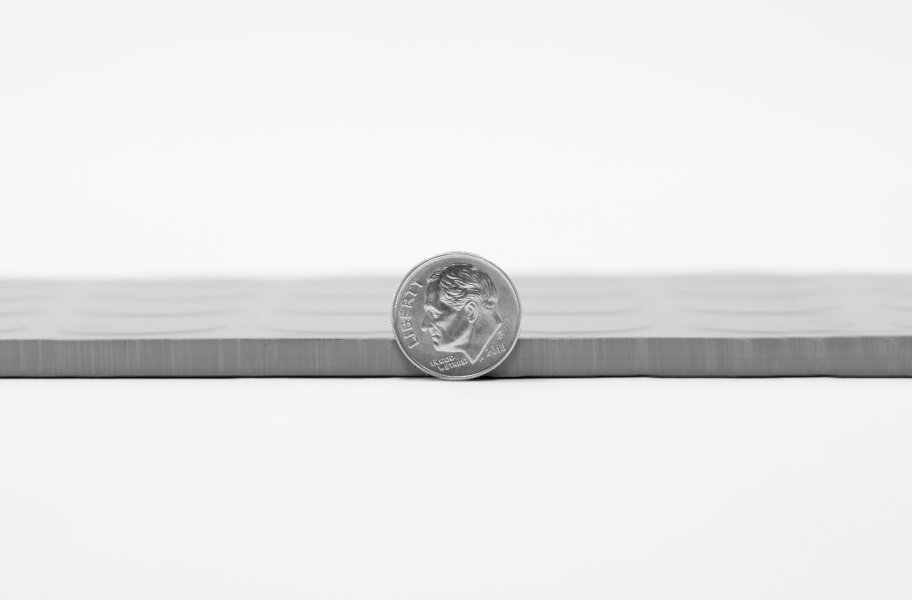

- 17.68" x 17.68" x 1/4"
- Items/box
- 1.0000
- Variants
- 12
Warranty
30 Day Money Back Guarantee, 10-Year Warranty.
Available Variants (12)
| Swatch | SKU | Color | Status | In stock |
|---|---|---|---|---|
| | 5156_4038_17865 | Black | Active | No |
| | 5156_4038_17867 | Dark Gray | Active | No |
| | 5156_4038_17868 | Light Gray | Active | No |
| | 5156_4038_17870 | Evergreen | Active | No |
| | 5156_4038_17871 | Meadow | Active | No |
| | 5156_4038_17872 | Terracotta | Active | No |
| | 5156_4038_17873 | Brick Red | Active | No |
| | 5156_4038_17874 | Chocolate | Active | No |
| | 5156_4038_17875 | Caramel | Active | No |
| | 5156_4038_17877 | Yellow | Active | No |
| | 5156_4038_17878 | Canvas | Active | No |
| | 5156_4038_17879 | White | Active | No |
Installation
Installation of these floor tiles typically includes: Clean your sub floor so that it is free of all dirt, dust, grease, or other foreign material. When installing the hard plastic tiles, we recommend starting in the front left corner of the room and working your way out from there. Make sure the female side (loops) of the tile is facing away from the wall. After filling the left wall with tiles and the adjacent wall, proceed to fill the rest of the room with whole tiles. When you come up to a wall or object, don’t worry. Just measure the area and cut the tiles with a tile cutter or a power saw with a fine-toothed blade and put the trimmed tiles into place. When trimming the tiles into place, make sure you leave about a 3/4” space between the tiles and the wall or obstruction. Once the tiles are in place, you can then snap in the edge pieces, if you purchased them.
Maintenance
Cleaning of these multiuse tiles typically includes: Vacuuming or sweeping any loose crumbs, dust, or debris from the tiles when necessary. Hose off or damp mop the floor tiles with a mild soap and water mixture for tough or caked on dirt and/or stains.
Full Specifications
| alt unit of measure | sqft |
| calculator type | sqft |
| can backorder | true |
| car jack approved | true |
| category filters | ["garage_category","garage_tiles"] |
| chemical resistant | true |
| color axis | B1198 |
| color display name | Black |
| colorfast | true |
| esd max | 50 |
| esd min | 40 |
| exact length inches | {"amount":"17.6800","unit":"INCH"} |
| exact weight lbs | {"amount":"4.0000","unit":"POUND"} |
| exact width inches | {"amount":"17.6800","unit":"INCH"} |
| fd swatch sku url 1 | https://d2q5qaygbbwnnw.cloudfront.net/image/230444301506/image_2b5p7occgp4pn7bs0o2313ve06 |
| flooring designer | none |
| gloss | ["semi_gloss"] |
| gmc shipping weight | 4.0000 |
| has corner border center | false |
| interlock style | hidden_interlock |
| inventory | false |
| is variant kit | false |
| items per box | 1.0000 |
| lf features | ["chemical_resistant","colorfast","mold_mildew_resistant"] |
| lf shipping program | ["free_ship"] |
| material | PVC |
| max order qty | 99999 |
| min order qty | 8 |
| nom thickness | 1/4" (6.5mm) |
| nominal length inches | {"amount":"17.6800","unit":"INCH"} |
| nominal sq ft | 2.17 |
| nominal width inches | {"amount":"17.6800","unit":"INCH"} |
| origin | made_in_usa |
| pdp icon 5 | interlocking |
| pdp icon 6 | eco_friendly |
| percent overage | 5 |
| primary color filter | black |
| qty increment | 1 |
| quick ship | false |
| sample id | S10209 |
| shipping program | free_ship |
| size | 17.68" x 17.68" x 1/4" |
| sku | 5156_4038_17865 |
| slip resistant | yes |
| status color | color_launched |
| status product | product_launched |
| status variant | variant_launched |
| tf garage tile type | flexible |
| tf made in usa | made_in_usa |
| unit of measure | tile |
| variant axis | A2553 |
| variant display name | 17.68" x 17.68" Tile (2.17 sq ft) |
| visible when oos | true |
