COREtec Plus XL 9" Waterproof Vinyl Planks
Model · 7403

COREtec Plus XL 9" Waterproof Vinyl Planks

vinyl tiles planks made in china
floating waterproof kid safe pet friendly

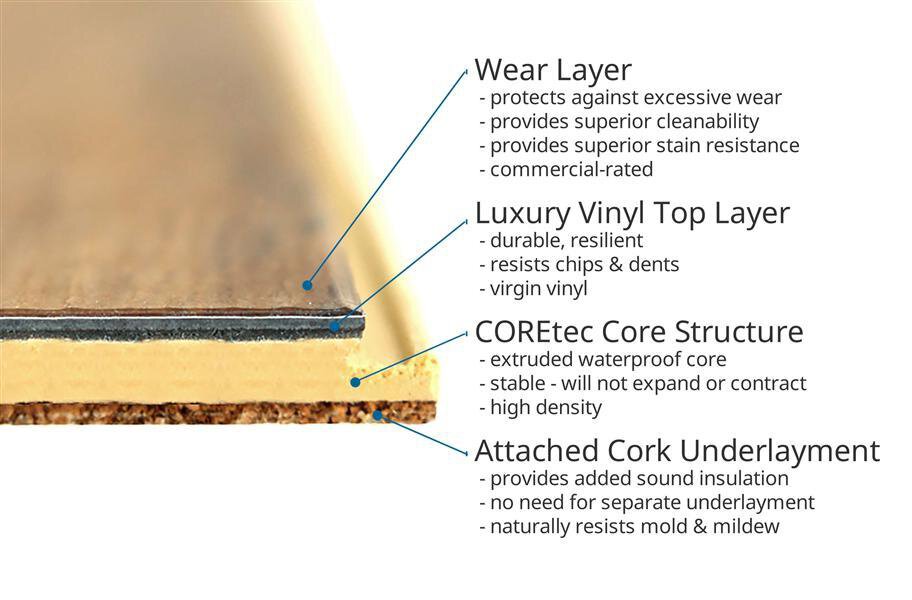

COREtec Plus XL planks are the ultimate flooring solution when it comes to commercial and residential environments. Fully waterproof, this resilient engineered vinyl floor can be installed in any room and on any level. With a durable 20mil wear layer, cork underlayment attached, and a lifetime structural warranty, these floating floor planks are the "mac daddy" of all the flooring options.
  • IIC 62, STC 62, R Value 057
  • Whittier Oak ships same or next business day from TN
  • Will not interlock with floors ordered before 11/2015
  • Montrose Oak out of stock until 7/9/2016.

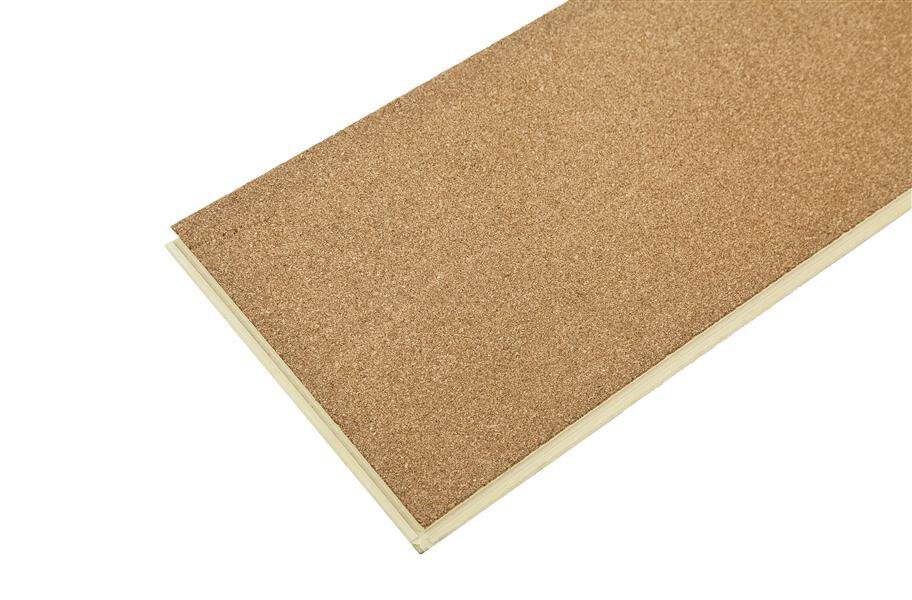

  • Underlayment attached.
Size
9" x 72"
Coverage
26.9500 case
Items/box
6.0000
Variants
3
Warranty
Limited Lifetime Residential. 15-Year Limited Commercial.

Available Variants (3)

Swatch SKU Color Status In stock
Whittier Oak
7403_7293_32912 Whittier Oak Active No
Montrose Oak
7403_7293_32917 Montrose Oak Active No
Highlands Oak
7403_7293_32923 Highlands Oak Active No

Installation

Installation is simple and is commonly done by our customers. Installation of waterproof planks and tiles is as follows: Complete any necessary floor prep. Start with the tongue side facing the wall. After the initial starter board, press the end seam of the second plank into the end seam of the first plank, and then lock them together by laying the plank down. Continue working left to right. Install the first plank in the second row by inserting the tongue into the groove of the plank in the first row. This is best done with a low angle of the plank. Insert the long side seam at a slight angle first. As the top surfaces meet, rotate the plank down into the locked position. Engage the end seam, using a rubber mallet if necessary. Planks may be cut with the use of a crosscut power saw. Continue installing planks removing any gaps using a tapping block and a scrap of flooring to cover the tapping block. Be careful not to damage In*Step tongue and groove. Protect all exposed edges by installing wall molding and/or transition strips. Make sure that no plank will be secured in any way to the subfloor.

Maintenance

Maintenance of the floor typically includes: Daily or weekly vacuuming or dust mopping of dirt, grit, dust etc. Use felt pads under chair and furniture legs to prevent scratching of the flooring surface. Place door mats at all entrances to prevent tracked in dirt, rocks, moisture, and other debris. Avoid using rubber backed mats as they can stain the flooring surface over time. When mopping, use a damp and never a wet mop. Clean up spills immediately to prevent damage to the floor.

Full Specifications

alt unit of measure sqft
attached underlayment true
bazaarvoice brand coretec
calculator type case
can backorder true
color axis B5501
color display name Whittier Oak
core wpc
coverage 26.9500
edge profile ["micro_beveled"]
esd max 5
esd min 2
exact length inches {"amount":"72.0000","unit":"INCH"}
exact weight lbs {"amount":"46.2900","unit":"POUND"}
exact width inches {"amount":"9.0000","unit":"INCH"}
flooring designer none
gmc shipping weight 46.2900
has corner border center false
inventory false
is variant kit false
items per box 6.0000
lf features ["attached_underlayment"]
locking system valinge_5g_interlock
map price [{"amount":"212.64","currency":"USD"}]
max order qty 99999
min order qty 1
nominal length inches {"amount":"72.0000","unit":"INCH"}
nominal sq ft 26.95
nominal width inches {"amount":"9.0000","unit":"INCH"}
origin made_in_china
percent overage 5
qty increment 1
quick ship false
sample id S10510
shipping program none
size 9" x 72"
sku 7403_7293_32912
status color color_discontinued
status product product_discontinued
status variant variant_discontinued
unit of measure case
variant axis A2326
variant display name 9" x 72" plank (26.95 sqft/case)
wear layer {"amount":"0.5000","unit":"MILLIMETER"}
